HHJ11C Curtain Wall Hinge
Modern curtain wall architecture is trending toward large-panel divisions, big insulating glass units, and extra-wide extra-high outward-opening casement window designs. Traditional conventional friction stays and ordinary curtain wall hinges, constrained by material mechanics and structural configurations, commonly suffer from low rated load thresholds, weak weather-resistant anti-corrosion performance outdoors, and susceptibility to deformation and jamming after prolonged opening and closing. As a result, they struggle to meet the high standards of premium public and high-end residential curtain wall projects.
Addressing these industry pain points,3H Building Hardware introduces the HHJ11C Curtain Wall Hinge-specifically engineered for heavy-duty curtain wall outward-opening windows. Featuring a design patent, it accommodates the usage requirements of large-sized heavy sashes. With a rated load capacity far exceeding that of traditional hardware products, it easily handles the weight demands of extra-wide extra-high outward-opening windows, effectively ensuring long-term opening/closing stability of the sashes.

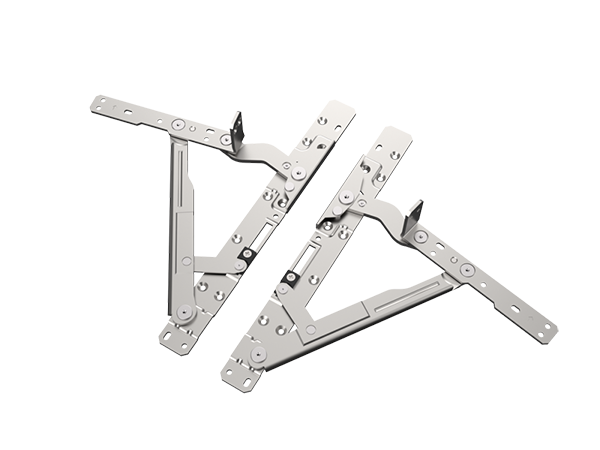

HHJ11C Curtain Wall Hinge product image
Superior Load Capacity-Adapts to All Types of Heavy-Duty Curtain Wall Outward-Opening Windows
Maximum opening angle of 80° and maximum load capacity of 110 kg, effortlessly supporting heavy curtain wall outward-opening sashes.
Suitable for sash widths ranging from 500 mm to 900 mm.
Equipped with an assist block and anti-fall device, eliminating the safety hazard of sash detachment.
For safety reasons, when sash width exceeds 600 mm, it is recommended to restrict the opening angle or install child safety locks.
Optimized force system based on a 1:1.5 standard sash width-to-height ratio; generally suitable for sash heights ≤ 1800 mm. Extra-high sashes can be used after passing force-fit trial assembly verification, offering broad adaptability.
304 Stainless Steel Construction-Sturdy Structure with Long-Lasting Corrosion Resistance
The connecting rods, mounting base plates, and fastening rivets-all core components-are made of high-quality 304 stainless steel, delivering excellent anti-rust and anti-corrosion properties, perfectly suited for the complex outdoor long-term exposure conditions of curtain wall applications.

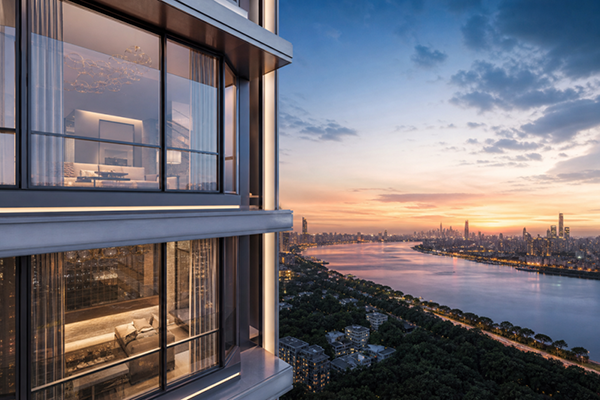

Adaptable to All Types of Curtain Wall Projects
01 Premium commercial office buildings · urban complexes
02 Star-rated hotels · cultural and tourism public buildings
03 High-end residential · large-flat apartments · villa curtain walls
04 Coastal rainy regions · high-altitude landmark buildings
3H Building Hardware's HHJ11C Curtain Wall Hinge solves industry pain points such as insufficient load capacity of traditional curtain wall hardware, susceptibility to outdoor corrosion, lack of safety protection, and jamming/deformation during opening and closing. It provides a standardized, reliable, and dedicated hardware solution for various heavy-duty outward-opening curtain wall projects-the preferred hardware choice for heavy outward-opening windows in curtain wall engineering!
