WZDM06(18 Profile)
3H INC.
| Brand:3H | |
| Maximum sash width： 800MM | |
| Maximum sash height：2400 MM | |
| Maximum load bearing：120KG | |
| Product adaptation standard：GB/T8478-2008 Aluminium Alloy Doors and Windows | |
| Package: 1 set in a inner box,5 boxes per parcel | |
| Application:Bi-fold Doors | |
Specification
<

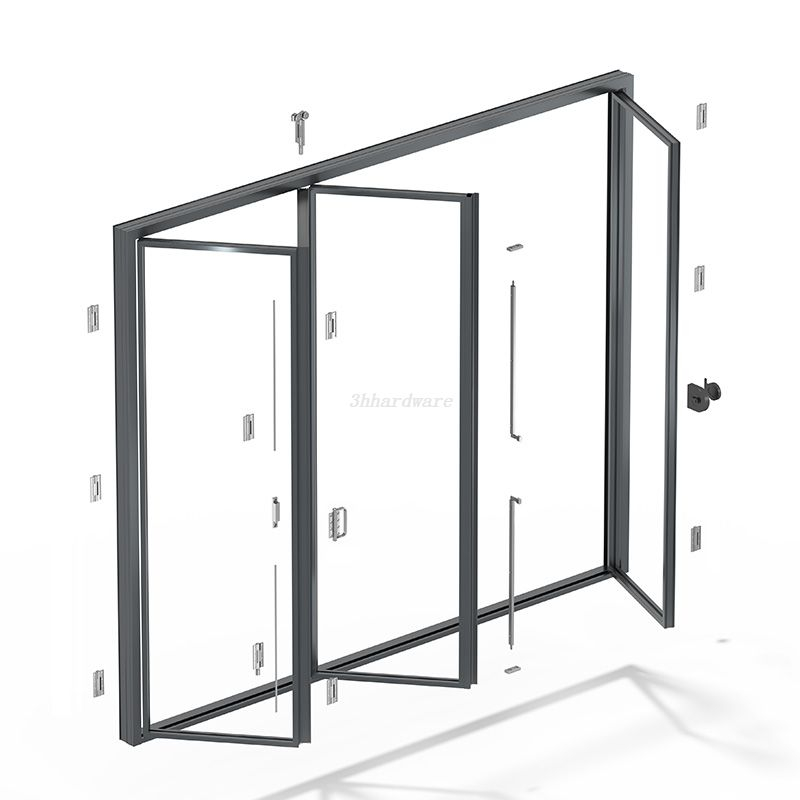

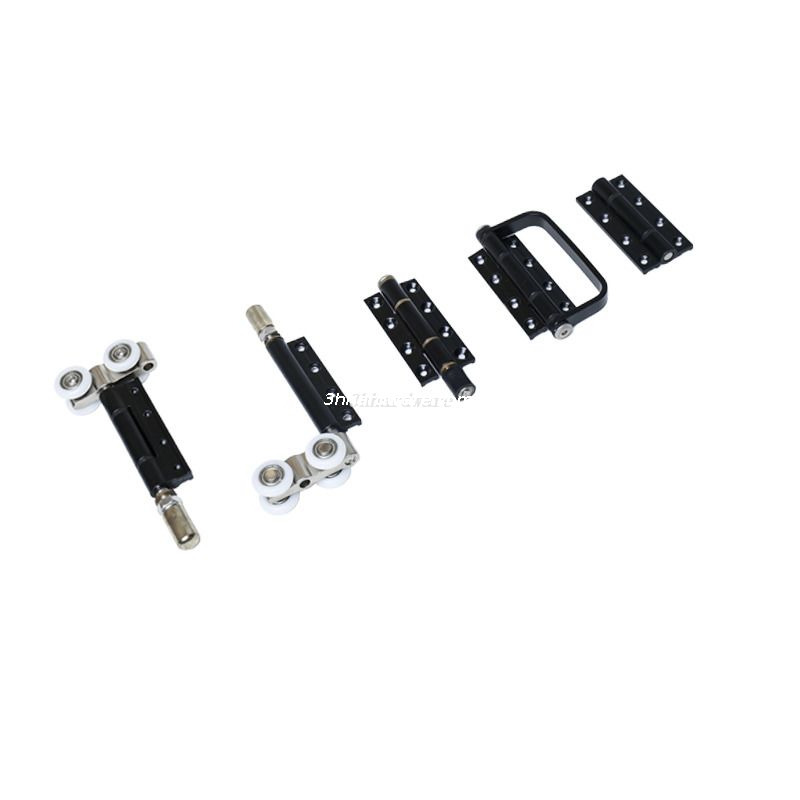

| No. | Item No. | Item | QTY | Description |

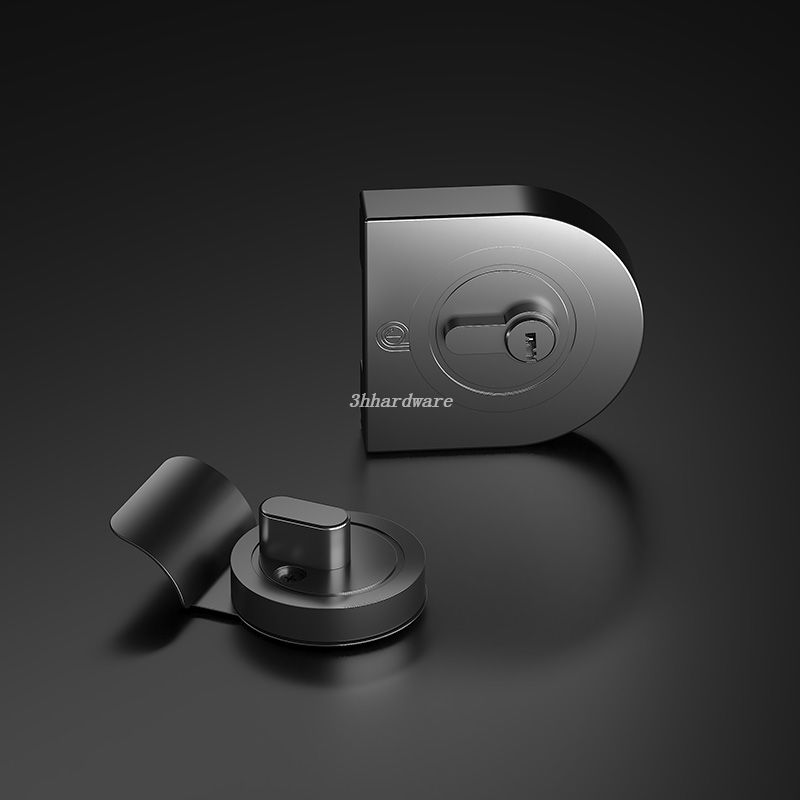

| 1 | WZDM06-08 | Door Handle | 1 | Aluminum alloy,Powder coating |
| 2 | WZDM06-07 | Middle Hinge | 9 | Aluminum alloy,Powder coating |
| 3 | WZDM06-05 | Pull Hinge | 1 | Aluminum alloy,Powder coating |

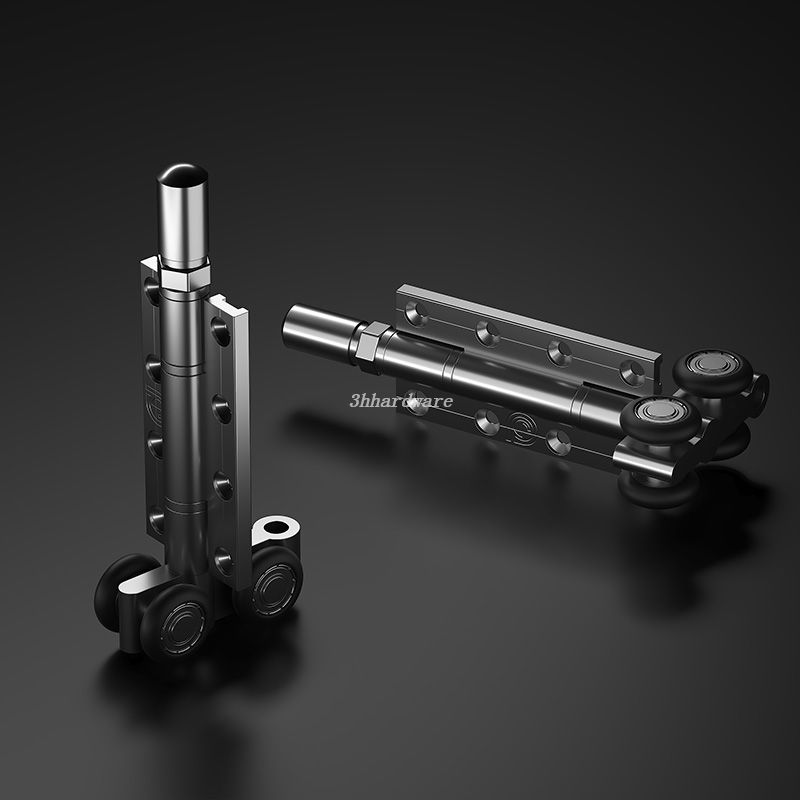

| 4 | WZDM06-01 | Upper Hinge | 1 | Aluminum alloy,Powder coating |
| 5 | WZDM06-03 | Bottom Hinge | 1 | Aluminum alloy,Powder coating |

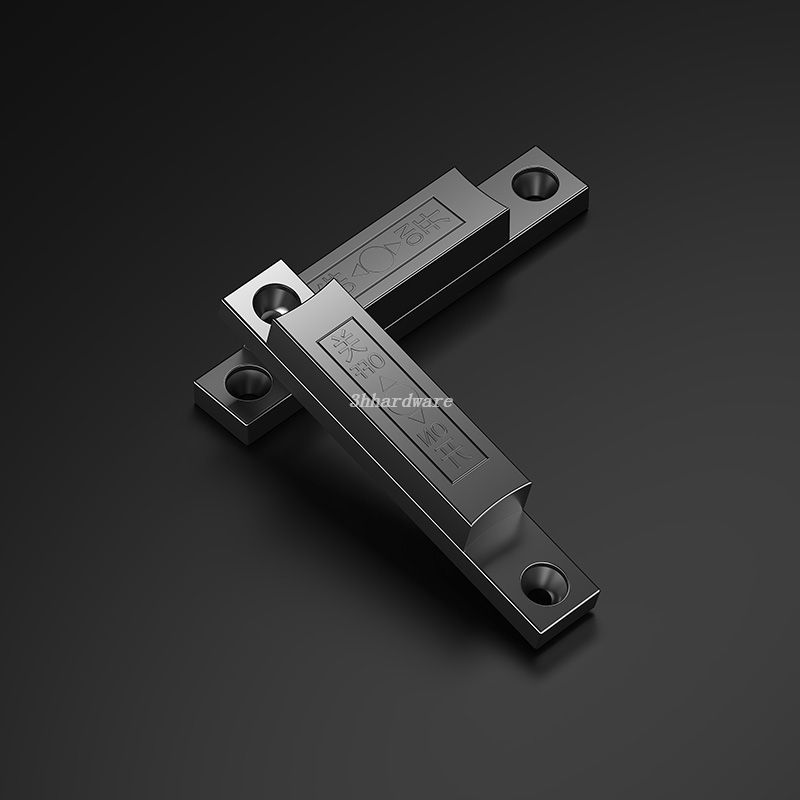

| 6 | WZDM06-09 | Flush Bolt Seat | 1 | Zinc alloy,Plating |
| 7 | WZDM06-10 | Flush Bolt Rod | 2 | Aluminum alloy,Powder coating |
Product Description
INSTRUCTIONS
Operating the door handle at the right side swing door to control the opening and closing of door sash.
Operating the handle and flush bolt at the left side folding door to control the folding door sash.
APPLICATION SCENARIOS
Vision of the scene needs. Suitable for balconies, vilas, interior partition doors, etc
