Bi-Fold Door Hardwarew ZDMQ01


Availability:

Quantity:



Inquire Add to Basket

High Quality Good Price Bi-Fold Door Hardwarew ZDMQ01

Model:
ZDMQ01
Brand:
3H INC.

Advantages

Main Components

Configuration

Download

Bi-fold door fittings in detail

✓Durable Alloy Construction

Crafted from high-strength aluminum alloy with anti-corrosion treatment, ensuring long-lasting performance in both residential and commercial interior environments.

✓Smooth and Quiet Folding Action

Precision-engineered hinges and tracks deliver friction-free, silent operation, enhancing user comfort in offices, hotels, and living spaces.

✓Space-Saving Design

Ideal for room dividers and partitions, the system allows doors to fold compactly, maximizing usable floor area without compromising accessibility.

✓Versatile Application Scenarios

Suitable for various interior settings – including home studies, meeting rooms, retail stores, and exhibition booths – adapting to diverse layout needs.

✓Complete Kit for Easy Installation

Includes all necessary hinges, handles, bolts, and guides, simplifying assembly and reducing installation time, with compliance to international quality standards.

Main Components

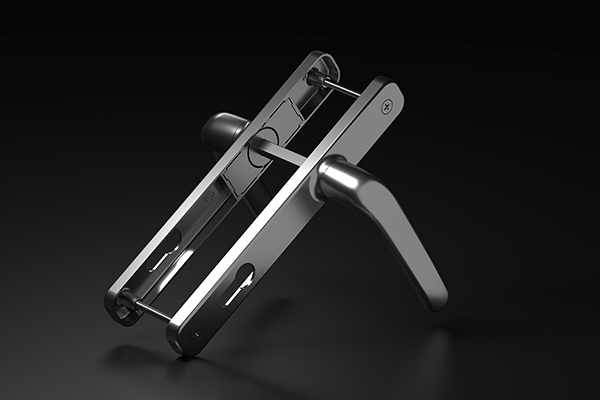

Folding Door Handle

The folding door handle features dual‑control operation— handle for swing doors, enabling smooth one‑handed use. Made of aluminum‑magnesium alloy with powder coating, it resists wear and corrosion for lasting durability. Supporting 80kg per sash (800mm×2400mm), it handles large installations effortlessly. Customizable colors match any decor; the complete kit ensures quick installation. Quiet, reliable, and ideal for balconies, villas, malls, and partitions.

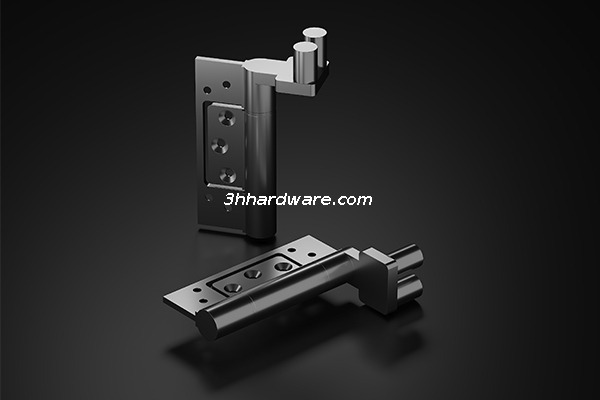

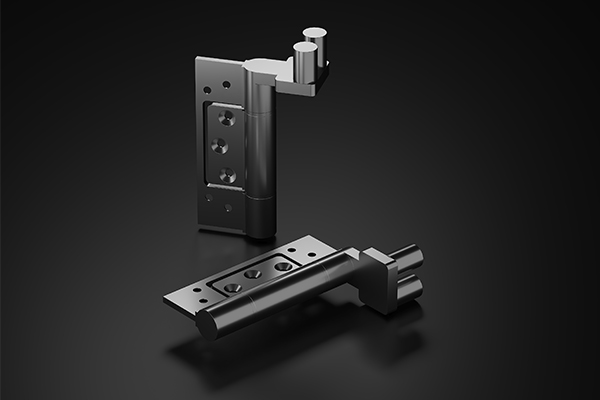

Upper Hinge

The upper hinges are premium bi‑fold door hardware solutions engineered for high‑performance folding door systems，offer outstanding corrosion resistance and long‑term durability. Their precision‑engineered design ensures smooth, friction‑free, and quiet operation, enhancing user comfort in any environment. Versatile and reliable, they are ideal for balconies, villas, shopping malls, and interior partitions, meeting diverse residential and commercial needs. Upgrade your folding door system with these robust, high‑quality upper hinges for lasting satisfaction.

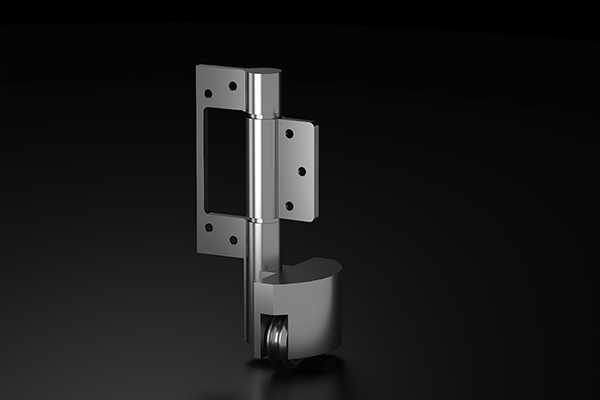

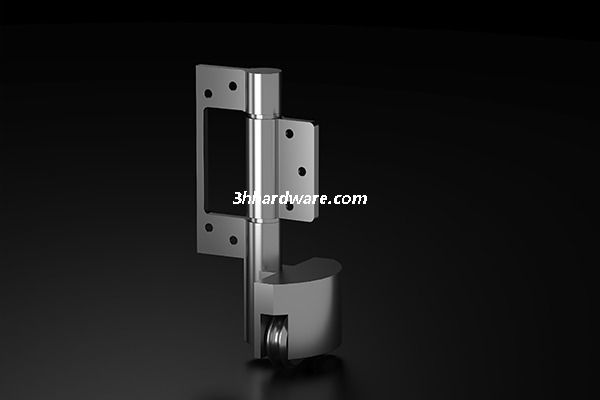

Roller Hinge

The roller hinge ensures quiet, effortless gliding for bi‑fold and folding doors. Built with high‑strength steel bearings and a corrosion‑resistant coating, it supports heavy sashes up to 80kg with minimal friction. Easy height adjustment simplifies alignment, reduces wear, and extends service life. Ideal for residential and commercial installations, it delivers reliable, maintenance‑free performance.

Configuration

Model	Size
ZDMQ01	Standard grooved
Load Bearing	Color
Maximum bearing load is 80kg	handle is black,can be customized,the other is natural
Material	Application
304 stainless Steel,Aluminum alloy	Balcony, Sunshine room,Partition door
Surface Treatment	Components
Powder coating	Door Handle,Roller Assembly,Hinge Assembly,Lock Box,Flush Bolt,Lock Body,Lock Cylinder,Lock Plate,Buffering Block.

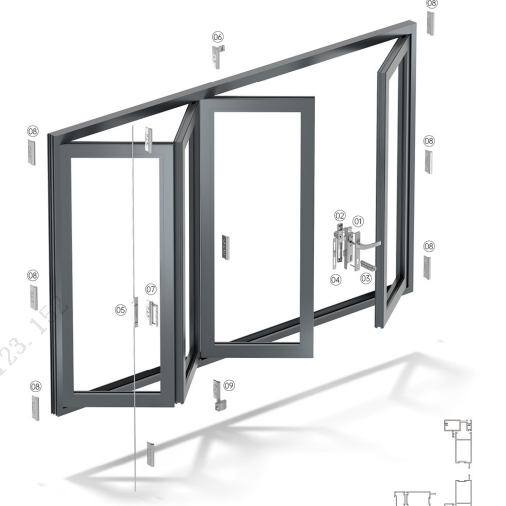

Specification

No.	Item No.	Item	QTY	Description
1	CZM20A	Door Handle	1	Aluminum alloy,Powder coating
2	CZM20	Door Handle	1	Aluminum alloy,Powder coating
3	3585D	Lock Body	1	304 SS,Natural
4	35/35A	Lock Cylinder	1	Brass,Plating
5	CZMK02	Lock Buckle	1	304 SS,Natural
6	CX06	Flush Bolt	2	Zinc alloy,Plating
7	ZDMQ01-S00	Upper Hinge Assembly	1	Aluminum alloy,Powder coating
8	ZDMQ01-Z00	Middle Hinge Assembly	1	Aluminum alloy,Powder coating
9	ZDMQ01-00	Hinge Assembly	9	Aluminum alloy,Powder coating
10	ZDMQ01-X00	Bottom Hinge Assembly	1	Aluminum alloy,Powder coating

Remark

1.Applicable to balconies, shopping malls. Large opening area.

2.Hidden crane rail bearing, flexible and light, easy to clean and maintain.

3.The signal door maximum width 800mm, maximum height 2400mm, maximum bearing single fan is 80KG.

4.The flush bolt’s length should depend on the door height and using demands.

Operating the door handle at the right side fixed swing door to control the opening and closing of door sash.Operating the handle and latch at the left side folding door to control the folding door sash.
