CZDM03
3H INC.
Product Description
| Brand:3H | |
| Maximum sash width： 800MM | |
| Maximum sash height：2400 MM | |
| Maximum load bearing：120KG | |
| Product adaptation standard：GB/T8478-2008 Aluminium Alloy Doors and Windows | |
| Package: 1 set in a inner box,5 boxes per parcel | |
| Application:European Standard Outwards Opening Doors | |
Specification
<
| No. | Item No. | Item | QTY | Description |
| 1 | CZM20A | Door Handle | 1 | Aluminum alloy,Powder coating |
| 2 | CZM20 | Door Handle | 1 | Aluminum alloy,Powder coating |

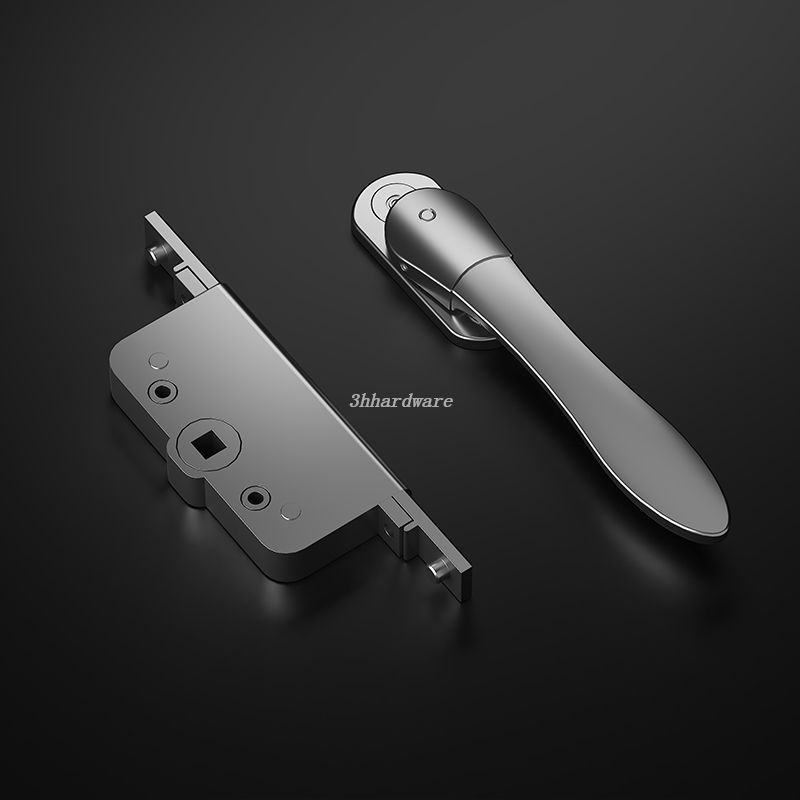

| 3 | 3085D | Lock Body | 1 | 304 SS,Natural |
| 4 | 45/45A | Lock Cylinder | 1 | Brass,Plating |
| 5 | CZMK37 | Lock Buckle | 1 | 304 SS,Natural |
| 6 | MX09 | Flush Bolt | 2 | Zinc alloy,Plating |
| 7 | CZ57 | Door Handle | 1 | Aluminum alloy,Powder coating |
| 8 | WZDM03-08 | Lock Box | 1 | Zinc alloy,Plating |
| 9 | WZDM03-09 | Flush Bolt | 2 | Zinc alloy,Powder coating |

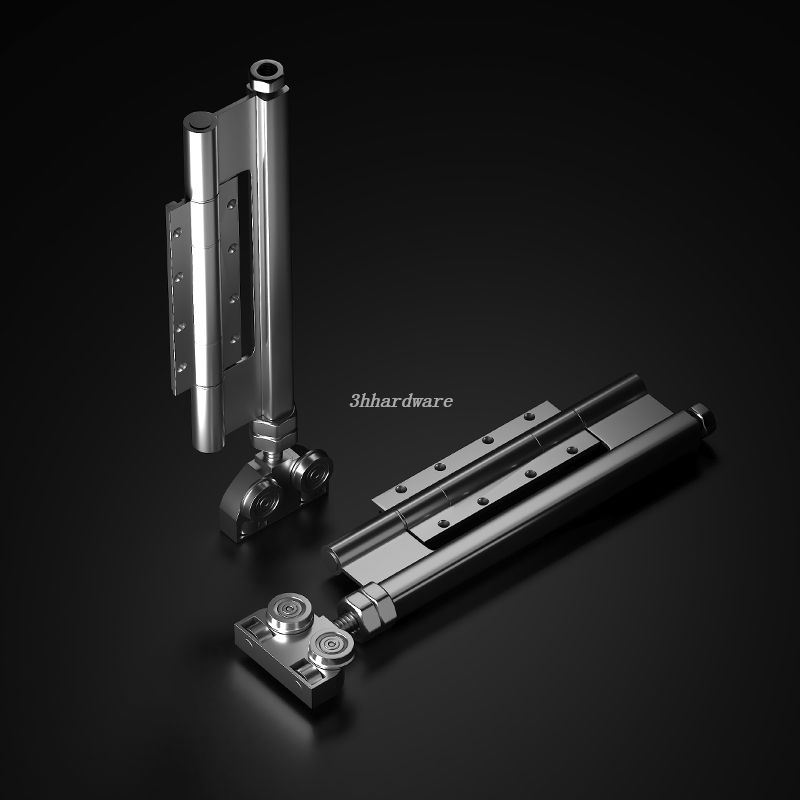

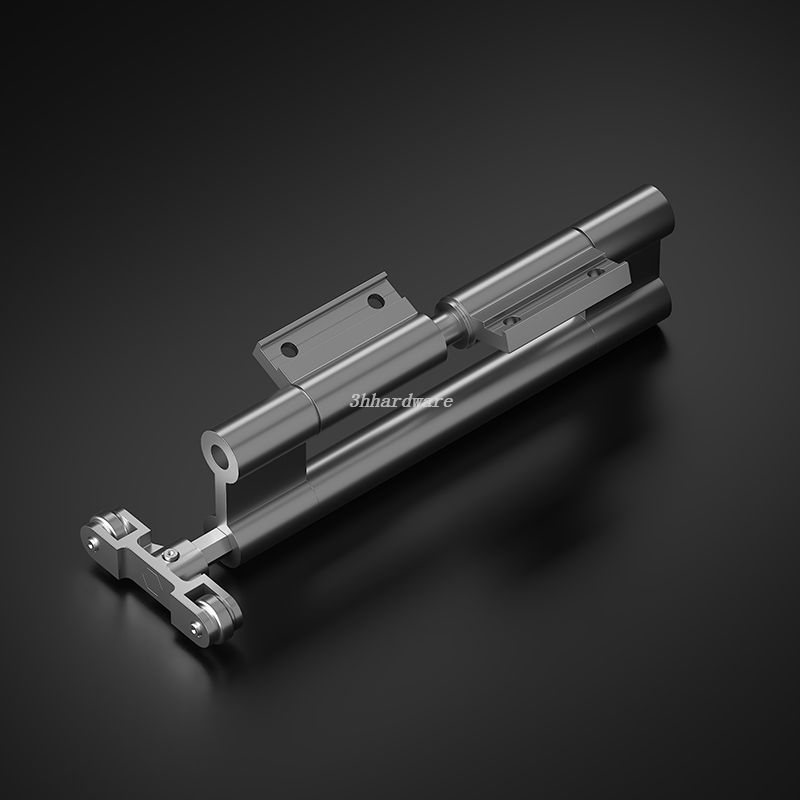

| 10 | WZDM03-01 | Upper Hinge Assembly | 1 | Aluminum alloy,Powder coating |
| 11 | WZDM03-06 | Middle Hinge Assembly | 1 | Aluminum alloy,Powder coating |
| 12 | WZDM03-07 | Hinge Assembly | 9 | Aluminum alloy,Powder coating |
| 13 | WZDM03-03 | Bottom Hinge Assembly | 1 | Aluminum alloy,Powder coating |
Product Description
INSTRUCTIONS

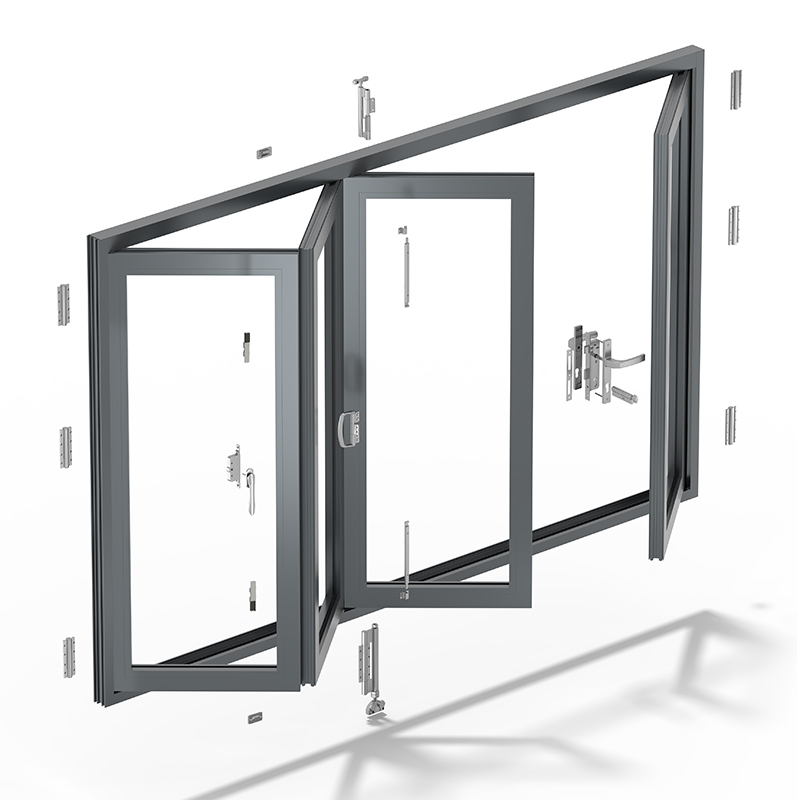

Operating the door handle at the right side swing door to control the opening and closing of door sash.
Operating the handle and flush bolt at the left side folding door to control the folding door sash.
APPLICATION SCENARIOS
Vision of the scene needs. Suitable for balconies, vilas, interior partition doors, etc
