Views: 0 Author: Site Editor Publish Time: 2025-09-26 Origin: Site
In modern home design, windows are pivotal to both architectural aesthetics and functionality. 3H Architectural Hardware’s Concealed Inward Opening Tilt & Turn Hardware System (Model: MH-YNXC05 Series) integrates safety, elegance, and practicality, delivering an entirely new experience for your living space.
1. Exceptional Load-Bearing Capacity, Uncompromised Safety
Supports up to 110kg per sash, effortlessly accommodating various window types.

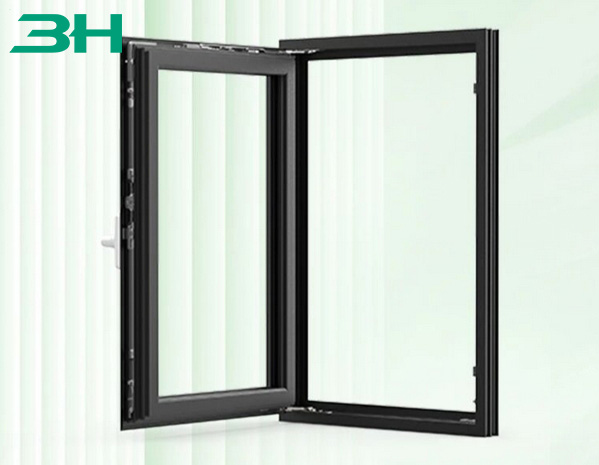

2. Extreme Opening Flexibility, Unleashing Freedom of Space
180° maximum inward opening angle for direct airflow into the interior.
Sustainable tilt mode enables long-term maintenance of inverted ventilation, facilitating continuous indoor-outdoor air circulation.
3. Three-Dimensional Adjustability, Compatible with More Profiles
Adapts to diverse scenario requirements, enhancing usability and applicability.

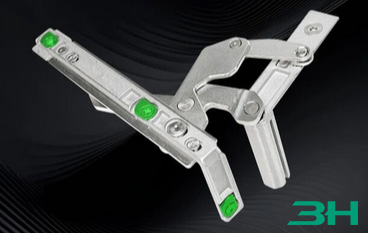

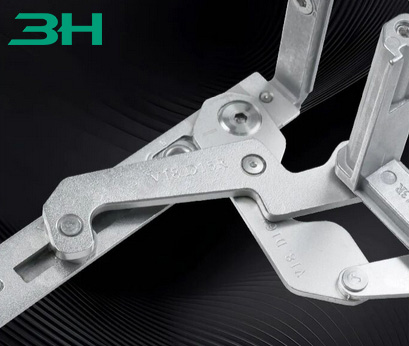

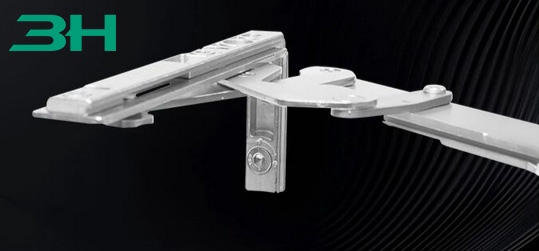

4. Anti-Sway Upper Hinge Design, Blending Aesthetics with Functionality
An anti-shake mechanism eliminates sash wobbling and unusual noises during inward opening.

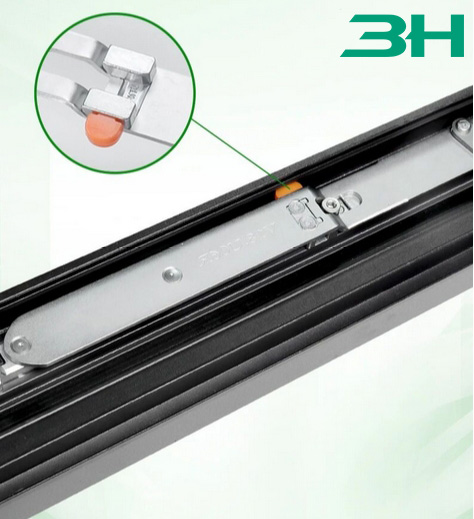

5. Dust-Proof Quick-Installation Screw Plate Structure
Withstands challenging on-site environments, enabling efficient and timely installation.

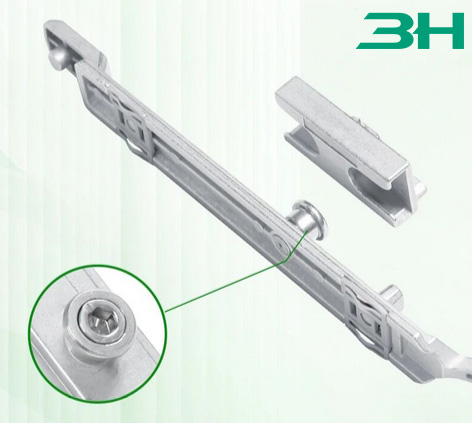

6. High-Security Lock Point with Mushroom Head Design
Achieves RC2-grade anti-burglary performance.

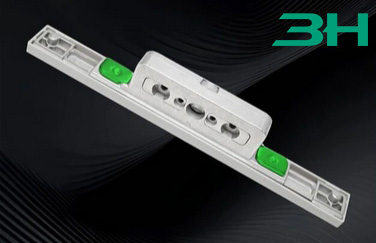

Universal lock box compatible with conventional square spindle handles and base-free handles, allowing flexible switching.
7. Special Electroplated Surface Treatment for Superior Corrosion Resistance
Zinc alloy and stainless steel materials comply with national standard raw material requirements.
Zinc alloy components undergo special electroplating surface treatment, delivering exceptional corrosion resistance and eliminating concerns about salt spray-induced breakage.

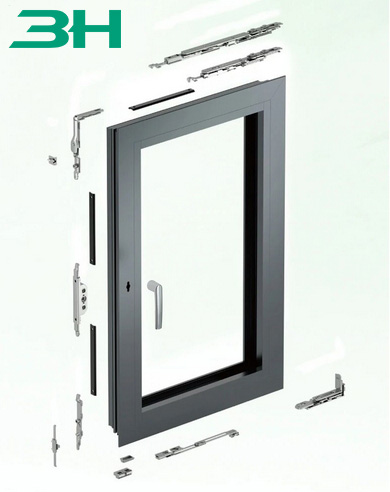

Configuration Diagram of Concealed Inward Opening Tilt & Turn Hardware System (MH-YNXC05)
