This standard applies to common window types such as casement windows (inward or outward opening), top-hung windows, and bottom-hung windows.
The lock cylinder is the core of anti-theft security and directly determines the lock's protection level. Among residential lock cylinders, C-grade lock cylinders currently offer the highest security and the longest resistance to technical unlocking, making them the preferred choice for families emphasizing theft prevention.

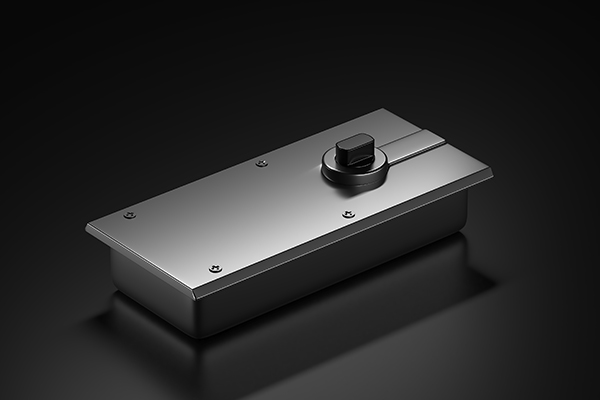

floor spring is a "door closer" hidden within the floor. It not only controls opening and closing but also allows adjustment of the closing speed and force. It holds the door steadily in place, preventing it from swinging uncontrollably in the wind.
Complies with the technical requirements of the national standard GB/T 37267-2018 "General Technical Conditions for Seismic Bracing and Hanging Systems in Buildings". The seismic bracing systems undergo comprehensive testing, including appearance, dimensions and tolerances, coating thickness, load-bearing performance of seismic connecting components, load-bearing performance of pipeline connecting components, cyclic loading performance, fatigue performance, fire resistance, and corrosion resistance.
<p>the sequential door closer ensures the doors close in the "right order," while the door closer ensures they "close properly." Understanding their differences is key to selecting the right components that meet safety standards while enhancing usability.for reliable door control hardware, consider 3H Hardware</p>

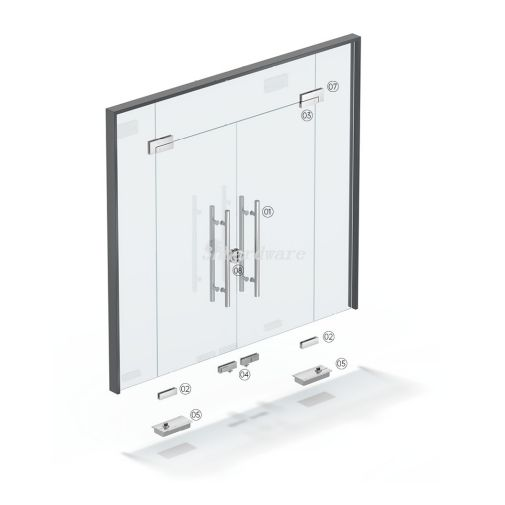

Glass Entrance Door Hardware System Solution
3H INC.
Product Adaptation
Suitable for glass door designs.
Features
Simple and integrated design,blocking dust and nose and increasing large area lighting, flexible to use and good decorative effect
Instructions
Operating the glass lock to control the open and close of glass door.
Application Scenarios
Residential, office buildings, hospitals, supermarkets and other places.
Configuration
No. | Item No. | Item | QTY | Description |
For Frame Swing Glass Door | ||||
1 | PH-1223 | Pull Handle | 1 | 304ss, mirror or satin finish |
2 | PF-10 | Bottom Patch | 2 | 304ss, mirror or satin finish |

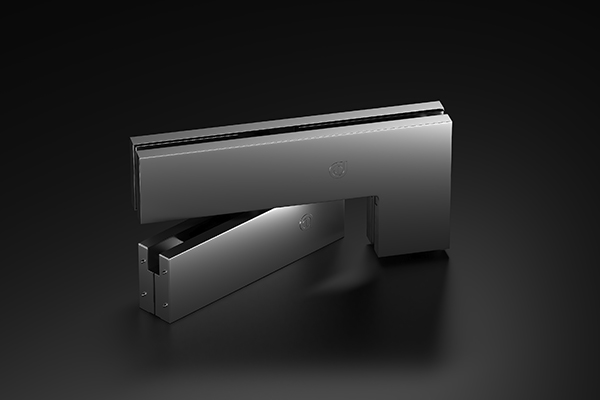

3 | PF-20 | Upper Patch | 2 | 304ss, mirror or satin finish |

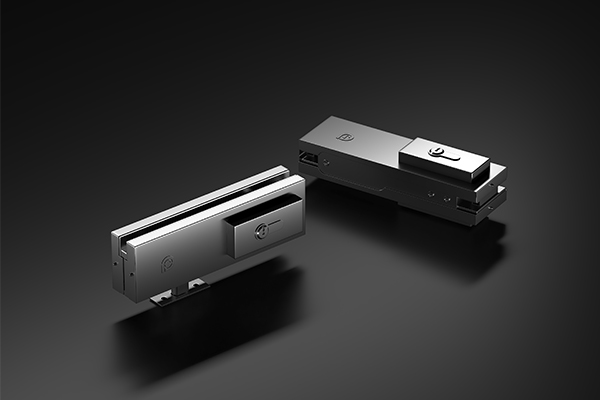

4 | PL-10 | Lock Patch | 1 | 304ss, mirror or satin finish |
5 | B-828 | Floor Spring | 2 | 304ss, mirror or satin finish |
6 | FS-D101 | Top Shaft | 2 | 304ss, mirror or satin finish |
For Frameless Swing Glass Door | ||||
1 | PH-1223 | Pull Handle | 1 | 304ss, mirror or satin finish |
2 | PF-10 | Bottom Patch | 2 | 304ss, mirror or satin finish |
3 | PF-20 | Upper Patch | 2 | 304ss, mirror or satin finish |
4 | PF-40 | Corner Patch | 2 | 304ss, mirror or satin finish |
5 | GL-582 | Door Lock | 1 | 304ss, mirror or satin finish |
6 | PL-10 | Lock Patch | 1 | 304ss, mirror or satin finish |
7 | B-828 | Floor Spring | 2 | 304ss, mirror or satin finish |
Product Adaptation
Suitable for glass door designs.
Features
Simple and integrated design,blocking dust and nose and increasing large area lighting, flexible to use and good decorative effect
Instructions
Operating the glass lock to control the open and close of glass door.
Application Scenarios
Residential, office buildings, hospitals, supermarkets and other places.
Configuration
No. | Item No. | Item | QTY | Description |
For Frame Swing Glass Door | ||||
1 | PH-1223 | Pull Handle | 1 | 304ss, mirror or satin finish |
2 | PF-10 | Bottom Patch | 2 | 304ss, mirror or satin finish |
3 | PF-20 | Upper Patch | 2 | 304ss, mirror or satin finish |
4 | PL-10 | Lock Patch | 1 | 304ss, mirror or satin finish |
5 | B-828 | Floor Spring | 2 | 304ss, mirror or satin finish |
6 | FS-D101 | Top Shaft | 2 | 304ss, mirror or satin finish |
For Frameless Swing Glass Door | ||||
1 | PH-1223 | Pull Handle | 1 | 304ss, mirror or satin finish |
2 | PF-10 | Bottom Patch | 2 | 304ss, mirror or satin finish |
3 | PF-20 | Upper Patch | 2 | 304ss, mirror or satin finish |
4 | PF-40 | Corner Patch | 2 | 304ss, mirror or satin finish |
5 | GL-582 | Door Lock | 1 | 304ss, mirror or satin finish |
6 | PL-10 | Lock Patch | 1 | 304ss, mirror or satin finish |
7 | B-828 | Floor Spring | 2 | 304ss, mirror or satin finish |
