JTSM06
3H INC.
Product Description
Item No. | JTSM06 |
Size | Standard grooved |
Application | Balcony, Sunshine room,Partition door |
Load Bearing | Maximum bearing load of single sash is 300kg |
Material | 304 stainless Steel,Aluminum alloy |
Surface Treatment | Powder coating |
Color | handles' is customized,the other is natural |

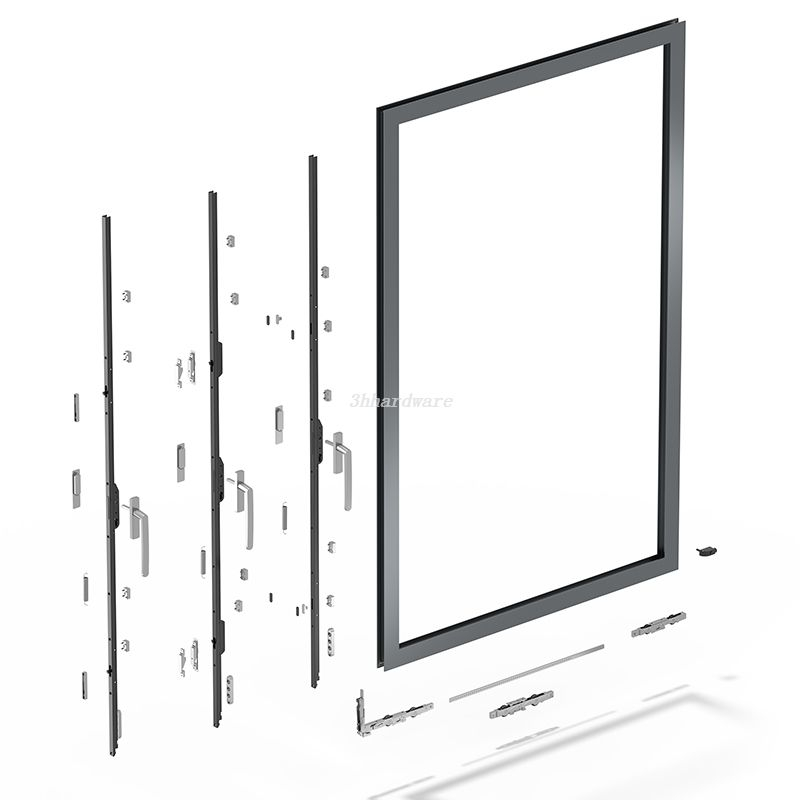

Components | Transmission parts,Front roller parts,Rear roller parts,Affiliated parts,Handle,Middle roller parts,Rubber sealing strip |
Function | durable,reliable |
Package | Box |
Specification
<
| No. | Item No. | Item | QTY | Description |

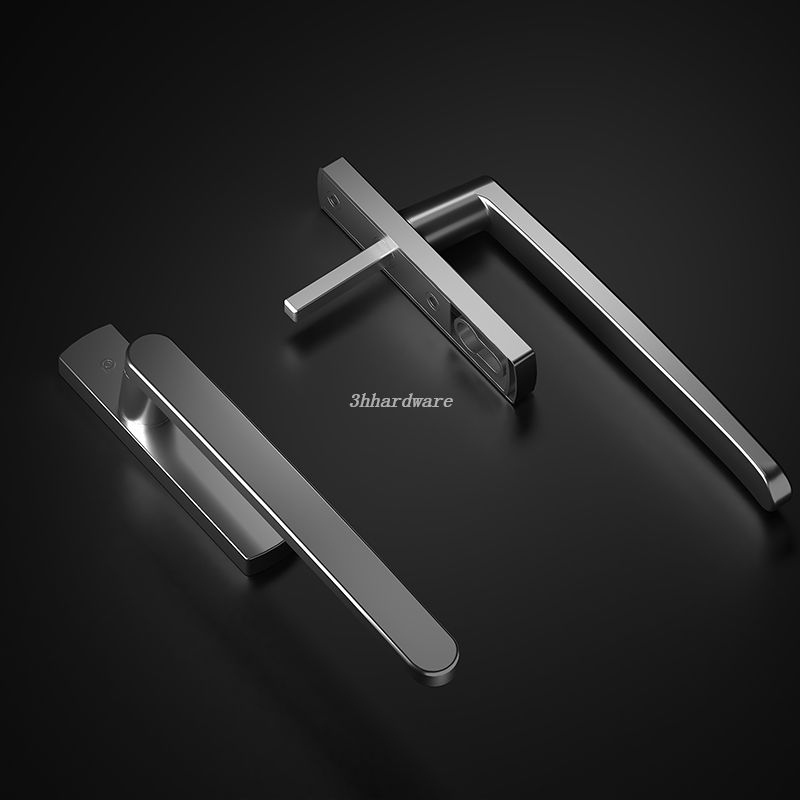

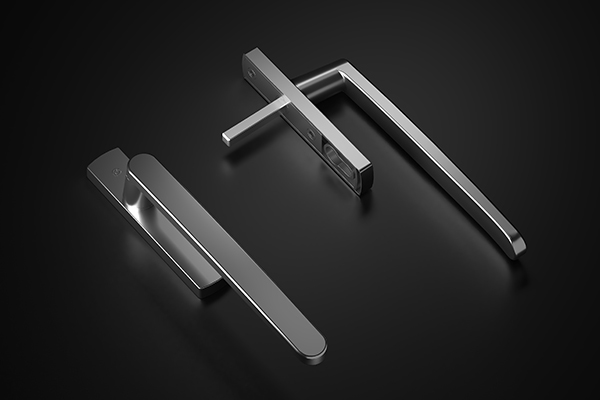

| 1 | JCZM21 | Door Handle | 1 | Aluminum Alloy,Spraying |
| 2 | JTSM06-01 | Transmission Rod | 1 | Carbon Steel,Spraying |

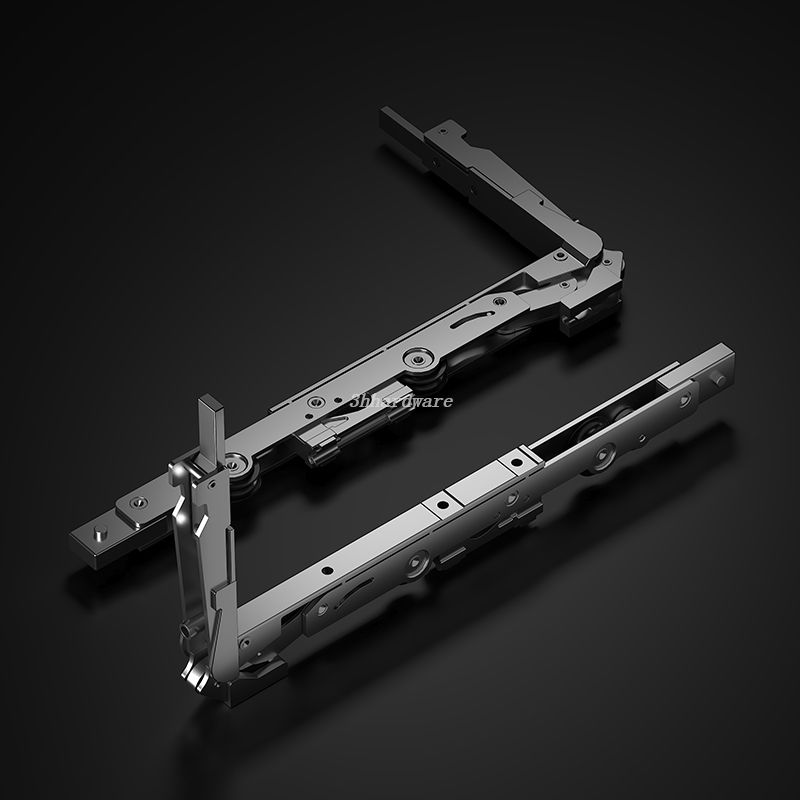

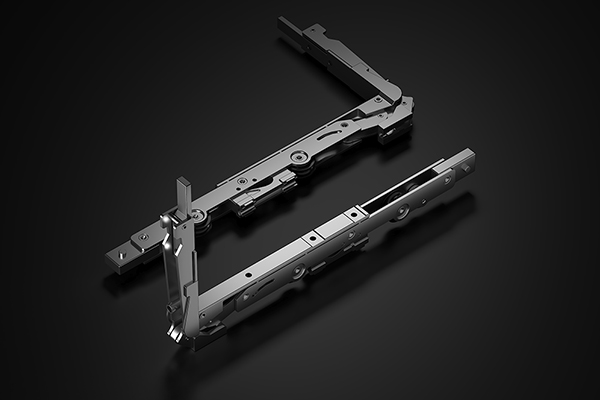

| 3 | JTSM06-02 | Front Roller | 1 | Zinc Alloy,Spraying |

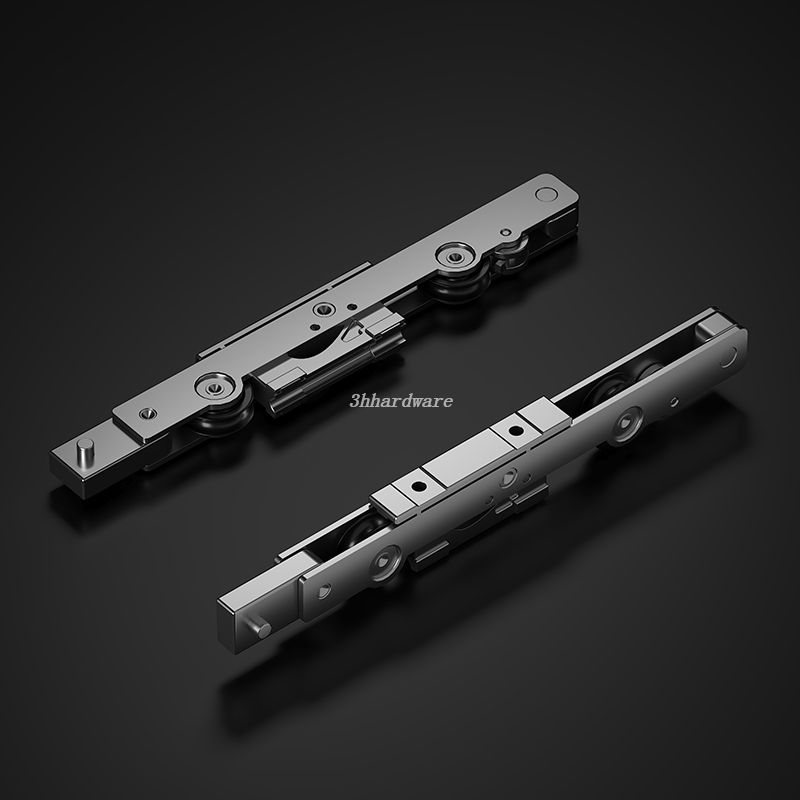

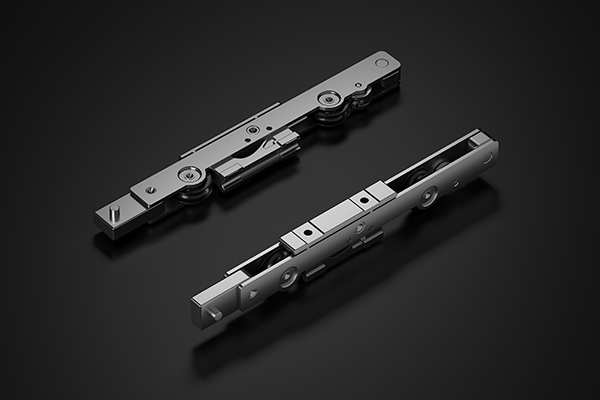

| 4 | JTSM06-03 | Rear Roller | 1 | Zinc Alloy,Spraying |
| 5 | JTSM06-04 | Lock Seat | 2 | Cast Steel,Plating |
| 6 | JTSM06-05 | Roller Block | 4 | Nylon,Natural |
| 7 | JTSM06-06 | Anti-bumping Block | 1 | Nylon,Natural |
| 8 | JTSM06-07 | Short Cushion Block | 8 | Aluminum Alloy,Natural |
| 9 | JTSM06-08 | Long Cushion Block | 1 | Aluminum Alloy,Natural |
| 10 | JTSM06-09 | Roller Limit Block | 1 | Cast Steel,Plating |
| 11 | JTSM06-10 | Connecting Axis | 2 | Cast Steel,Plating |
| 12 | JTSM06-11 | Connecting Rod | 1 | Carbon Steel,Plating |
| 13 | JTSM06-12 | Spring | 1 | Manganese steel,Spraying |
| JTSM07-06 | Middle Roller | 1 | Zinc Alloy,Spraying | |
| JSX**Y-**T | Lock Cylinder | 1 | Brass,Plating | |
| Installation Kit | 1 | / |
Product Description

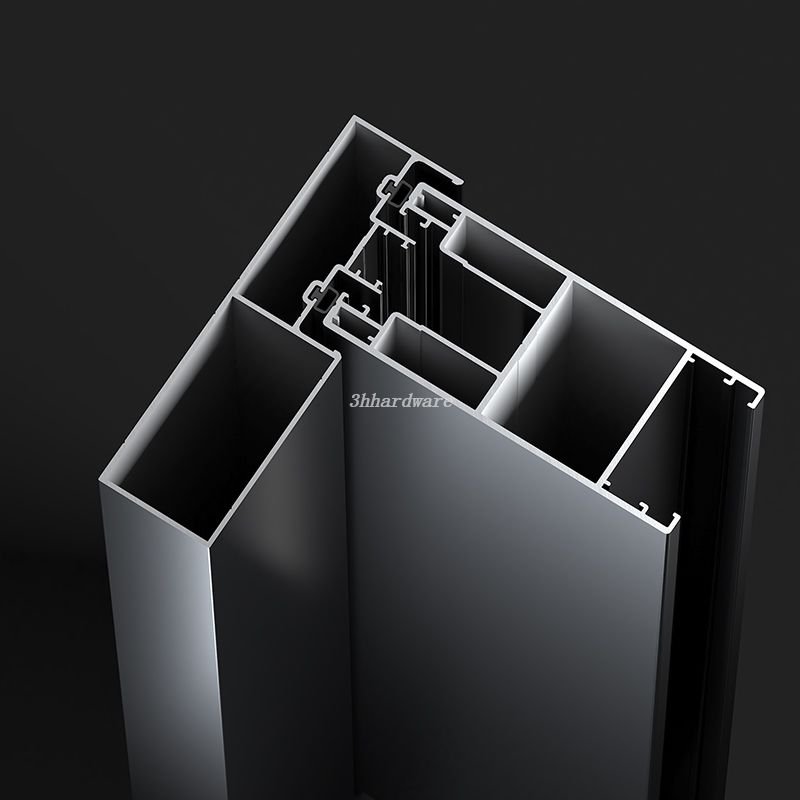

Max load bearing is 300kG. Slim frame, wider view. Large opening range, good water-tightness performance.
positioning at will.
