TSM04
3H INC.
Item No. | TSM04 |
Size | Standard grooved |
Application | Balcony, Sunshine room,Partition door |
Load Bearing | Maximum bearing load of single sash is 300kg |
Material | 304 stainless Steel,Aluminum alloy |
Surface Treatment | Powder coating |
Color | handles' is customized,the other is natural |
Components | Transmission parts,Front roller parts,Rear roller parts,Affiliated parts,Handle,Middle roller parts,Rubber sealing strip |
Function | durable,reliable |
Package | Box |

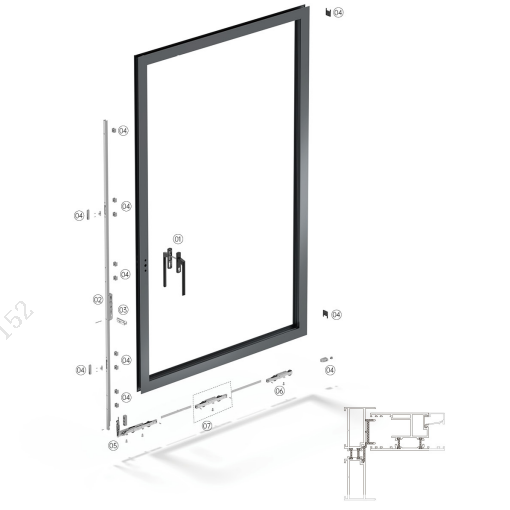

Specification
No. | Item No. | Item | QTY | Description |

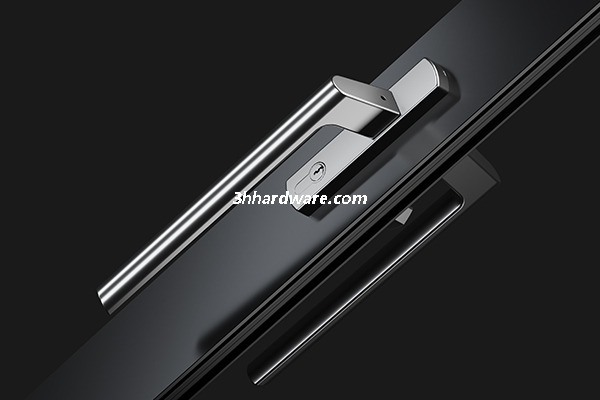

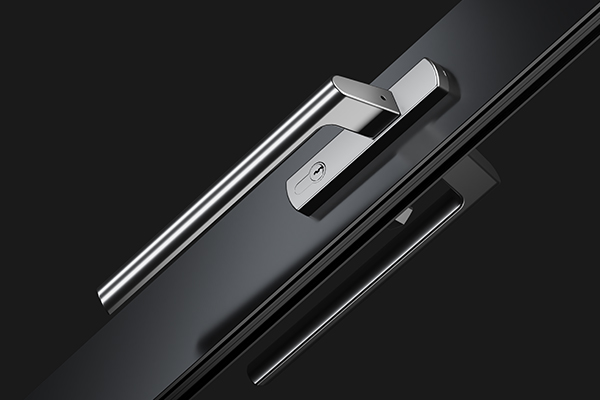

1 | CZ52A | Door Handle | 1 | Aluminum alloy,Powder coating |
2 | TSM04-24 | Transmission Device | 1 | Aluminum alloy,Oxidization |
3 | 35/45TB | Lock Cylinder | 1 | Brass,Plating |
4 | TSM04-03 | Accessories | 1 | / |

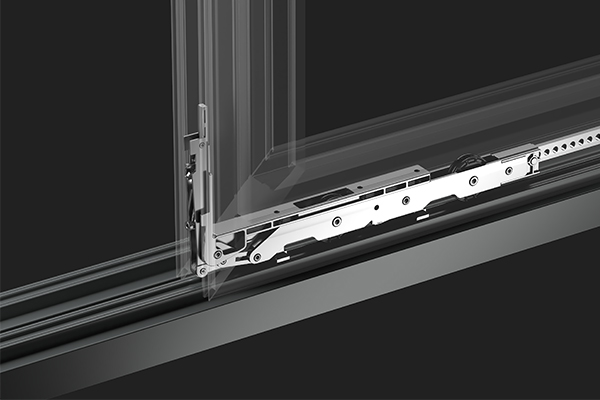

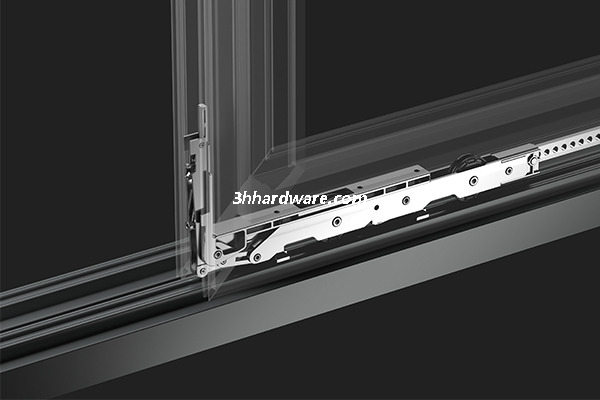

5 | TSM04-02 | Front Roller | 1 | Zinc Alloy,Spraying |
6 | TSM02-03 | Rear Roller | 1 | Zinc Alloy,Spraying |

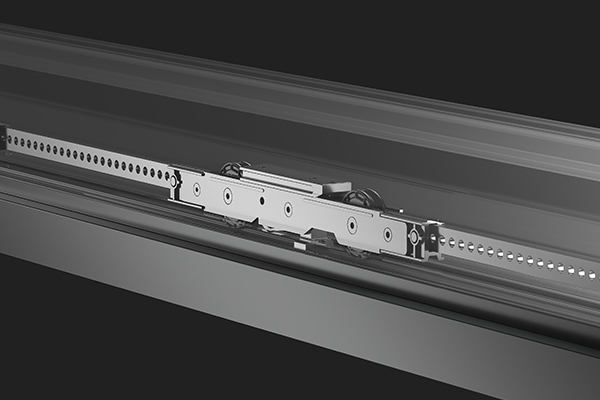

7 | TSM04-06 | Middle Roller | 1 | Zinc Alloy,Spraying |
Product Adaptation
Suitable for lift and slide door profiles
Features
Max load bearing is 300KG,space-saving,large opening range,flexible to replace and maintain.
Instructions
Max load bearing is 300KG. Slim frame, wider view. Large opening range, good water-tightness performance, positioning at will.
Application Scenarios
Operating the handle to 180 degree lock the door, handle down to 0 degree sliding the door open and close
