louver window system
3H INC.
Product Adaptation
Suitable for specific louver profiles
Features
Operating the handle to control the window blades to keep the air fresh and ventilate indoor.
Instructions
Operating the handle from 0° 45° 90° 120° to 180° to control the opening angles of blades.
Application Scenarios
Widely used in glass house, kitchen and toilet, ventilation ,etc

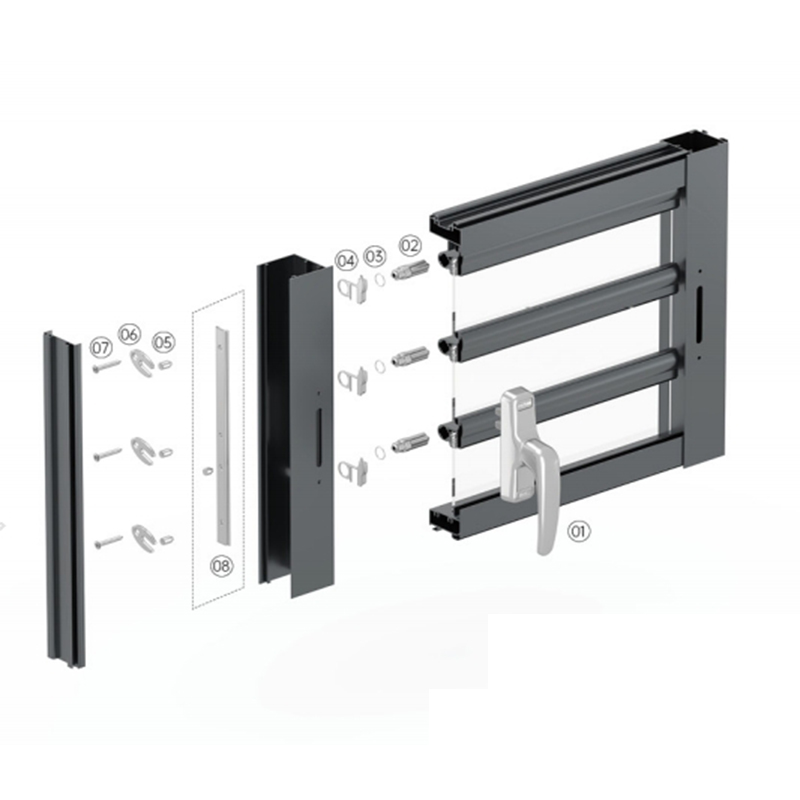

Configuration
| No. | Item No. | Item | QTY | Description |

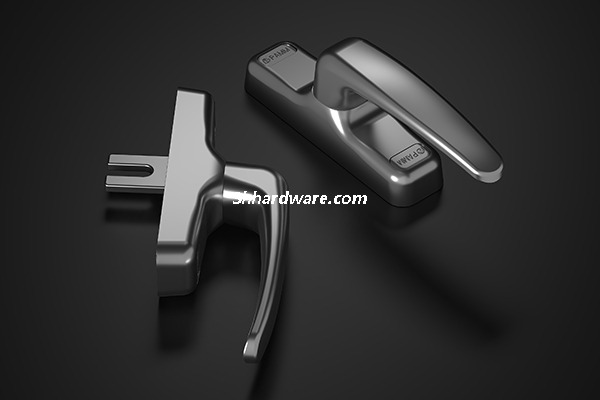

| 1 | CZH17E | Window Handle | 1 | Aluminum alloy,Powder coating |

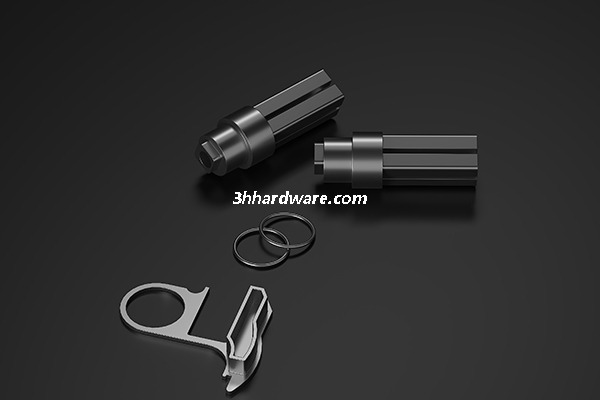

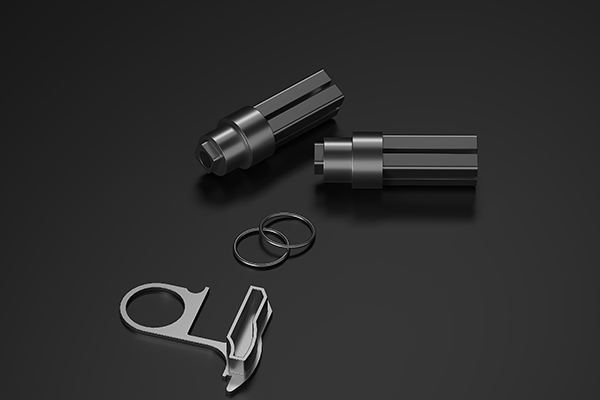

| 2 | WTO091-03R/L | Pull Block | 2 | Zinc alloy,Powder coating |
| 3 | WTO091-01 | Rubber Ring | 2 | PA66,Natural |
| 4 | WTO721R/L | Cover | 2 | PA66,Natural |

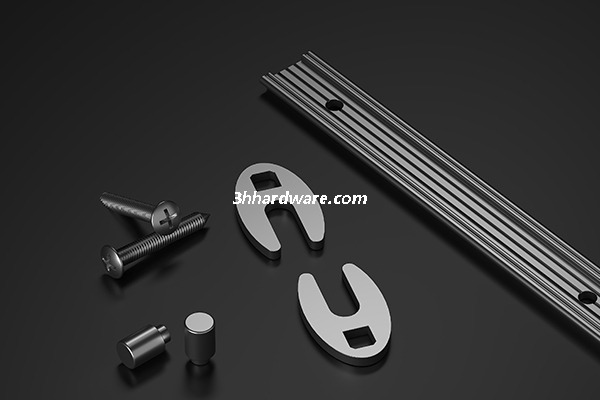

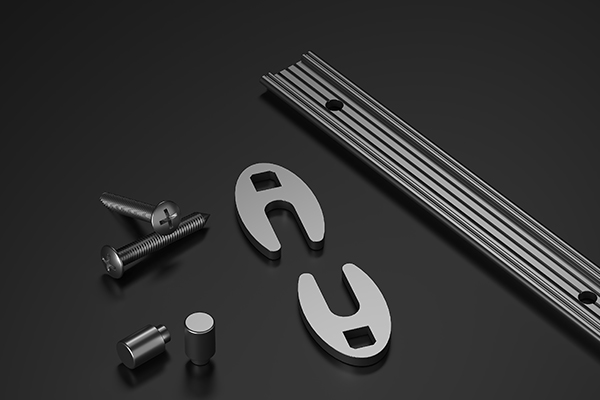

| 5 | T36-04 | Rivet | 2 | 304 SS,Natural |
| 6 | WTO091-02 | Shifting Fork | 2 | 304 SS,Natural |
| 7 | WTO344 | Screw | 2 | 304 SS,Natural |
| EXTRA WIDE, EXTRA HIGH, EXTRA HEAVY WINDOW TYPE, ADDITIONAL OPTIONAL ACCESSORIES: | ||||
| 8 | CG02 | Transmission rod | 2 | Aluminum alloy,Oxidized silver |
Product Adaptation
Suitable for specific louver profiles
Features
Operating the handle to control the window blades to keep the air fresh and ventilate indoor.
Instructions
Operating the handle from 0° 45° 90° 120° to 180° to control the opening angles of blades.
Application Scenarios
Widely used in glass house, kitchen and toilet, ventilation ,etc
Configuration
| No. | Item No. | Item | QTY | Description |
| 1 | CZH17E | Window Handle | 1 | Aluminum alloy,Powder coating |
| 2 | WTO091-03R/L | Pull Block | 2 | Zinc alloy,Powder coating |
| 3 | WTO091-01 | Rubber Ring | 2 | PA66,Natural |
| 4 | WTO721R/L | Cover | 2 | PA66,Natural |
| 5 | T36-04 | Rivet | 2 | 304 SS,Natural |
| 6 | WTO091-02 | Shifting Fork | 2 | 304 SS,Natural |
| 7 | WTO344 | Screw | 2 | 304 SS,Natural |
| EXTRA WIDE, EXTRA HIGH, EXTRA HEAVY WINDOW TYPE, ADDITIONAL OPTIONAL ACCESSORIES: | ||||
| 8 | CG02 | Transmission rod | 2 | Aluminum alloy,Oxidized silver |
