1. Spring Balance System – Smooth, Effortless Operation
Traditional sash windows relied on weights and pulleys – cumbersome, noisy, and prone to failure. Our vertical sliding hardware replaces them with precision-engineered spring or spiral balances. The specially engineered helix rod takes on up to 80% of the operational force, allowing even heavy sashes to glide up and down with minimal effort. No jamming, no warping – just smooth, balanced movement year-round.
2. Space-Saving Design – No Outward Protrusion
Unlike casement windows that swing outward into gardens, patios, or footpaths, vertical sliding windows operate entirely within the frame plane. This makes them the ideal choice for spaces where outward-opening windows are impractical – such as narrow alleyways, balconies, or areas with restricted external clearance.
Configuration
| NO. | ITEM NO. | ITEM | QTY | DESCRIPTION |

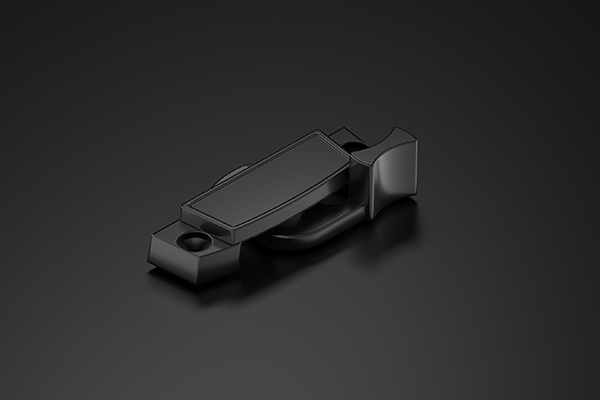

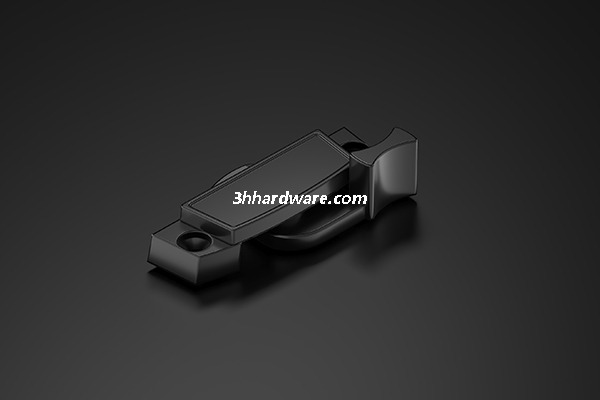

| 1 | SB12 | Window Lock | 1 | Zinc Alloy,Powder Coating |
| 2 | WZDC01-07 | Rotating Bar | 2 | Carbon Steel,Powder Coating |

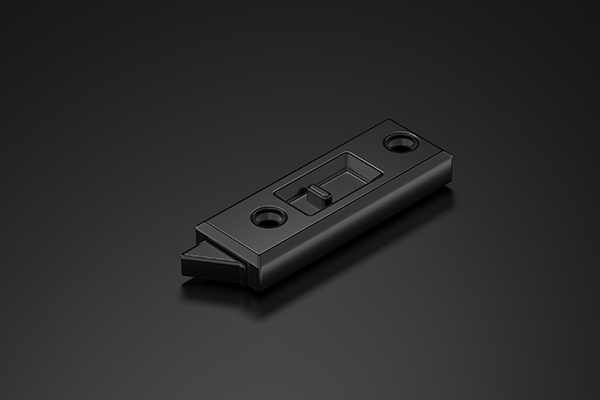

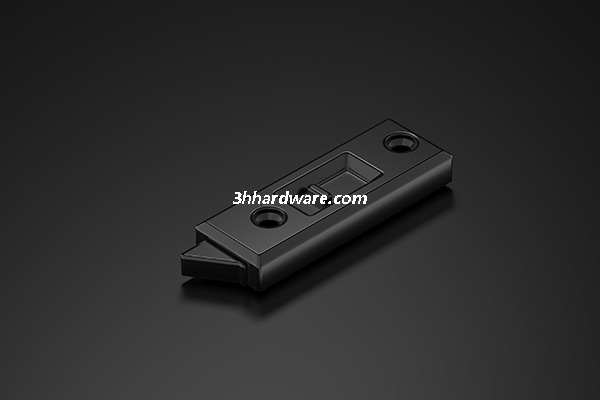

| 3 | WZDC01-05 | Left Tilting Lock | 1 | PP,Natural |
| 4 | WZDC01-06 | Right Tilting Lock | 1 | PP,Natural |
| 5 | WZDC01-16 | Spring Seat | 2 | PP,Natural |

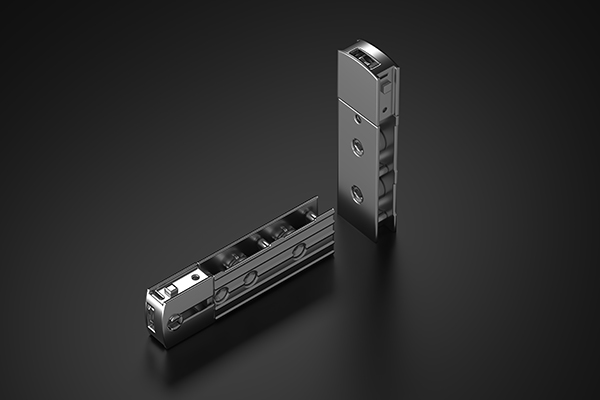

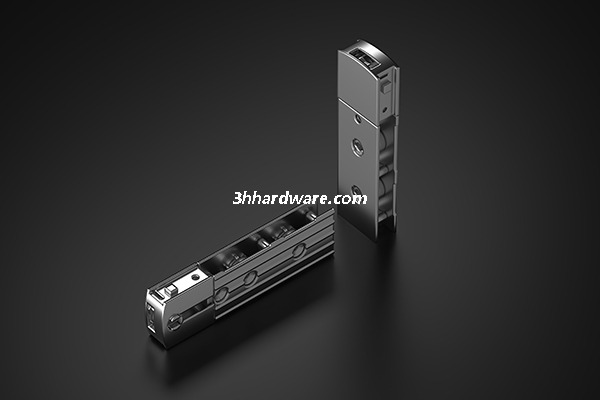

| 6 | WZDC01-15 | Bearing Sliding Lock | 2 | PP,Natural |
| 7 | WZDC01-17 | Spring 0601S | 2 | Manganese Steel,Plating(Optional) |
| 8 | WZDC01-18 | Spring 0602s | 2 | Manganese Steel,Plating(Optional) |
Remark
Operating the window lock to control the opening and closing, lifting up and down of window sash. Unlock the flip lock and flip it for cleaning.
