parallel window hardware
3H INC.
Product Adaptation
Suitable for European standard grooved sash profile,the stack height is 21MM.
Features
Window opening distance is adjustable for 240/220/200/175mm. Max load-bearing is 160kg.
Repeatedly opening and closing can be up to 25.000 times.
Instructions
Lift and push the operation rod to parallel open the window sash,press down to lock after cosing.
Application Scenarios
Office buildings, plaza, schools, etc..
Configuration

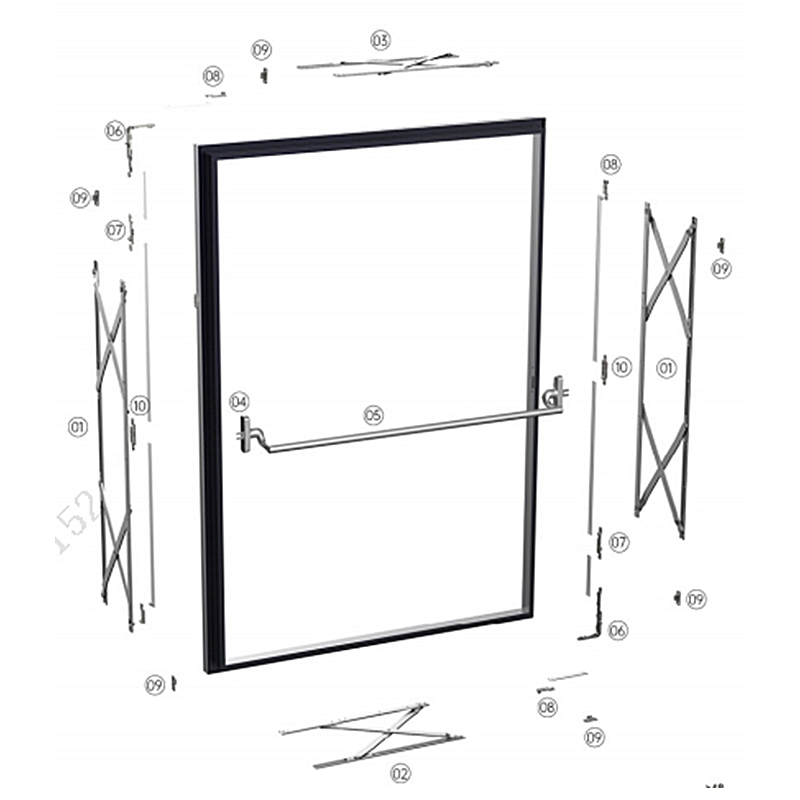

| No. | Item No. | Item | QTY | Description |
| 1 | HPTC40 | Friction Stay | 2 | 304 SS,Natural |
| 2 | HPTC20L | Friction Stay | 1 | 304 SS,Natural |
| 3 | HPTC20R | Friction Stay | 1 | 304 SS,Natural |
| 4 | CZH101 | Window Handle | 1 | Aluminum alloy,Powder coating |
| 5 | FZ087 | Operation Rod | 1 | Aluminum alloy,Oxidized silver(Customized) |
| 6 | CC14 | Corner Device | 2 | Zinc alloy,Plating |
| 7 | CL20 | Connecting Block | 2 | Zinc alloy,Plating |
| 8 | CL12 | Connecting Block | 4 | Aluminum alloy,Plating |
| 9 | CKG23 | Lock Seat | 6 | Zinc alloy,Plating |
| 10 | CQ28 | Converter | 2 | Zinc alloy,Plating |
| 11 | EPDM rubber strip | |||
Product Adaptation
Suitable for European standard grooved sash profile,the stack height is 21MM.
Features
Window opening distance is adjustable for 240/220/200/175mm. Max load-bearing is 160kg.
Repeatedly opening and closing can be up to 25.000 times.
Instructions
Lift and push the operation rod to parallel open the window sash,press down to lock after cosing.
Application Scenarios
Office buildings, plaza, schools, etc..
Configuration
| No. | Item No. | Item | QTY | Description |
| 1 | HPTC40 | Friction Stay | 2 | 304 SS,Natural |
| 2 | HPTC20L | Friction Stay | 1 | 304 SS,Natural |
| 3 | HPTC20R | Friction Stay | 1 | 304 SS,Natural |
| 4 | CZH101 | Window Handle | 1 | Aluminum alloy,Powder coating |
| 5 | FZ087 | Operation Rod | 1 | Aluminum alloy,Oxidized silver(Customized) |
| 6 | CC14 | Corner Device | 2 | Zinc alloy,Plating |
| 7 | CL20 | Connecting Block | 2 | Zinc alloy,Plating |
| 8 | CL12 | Connecting Block | 4 | Aluminum alloy,Plating |
| 9 | CKG23 | Lock Seat | 6 | Zinc alloy,Plating |
| 10 | CQ28 | Converter | 2 | Zinc alloy,Plating |
| 11 | EPDM rubber strip | |||
