Swing Window With Screen
3H INC.
Product Description
Product Adaptation
Suitable for frame and sash flush and European Standard 20 grooved profile, distance between frame and sash is 11.5-12 MM.
Features

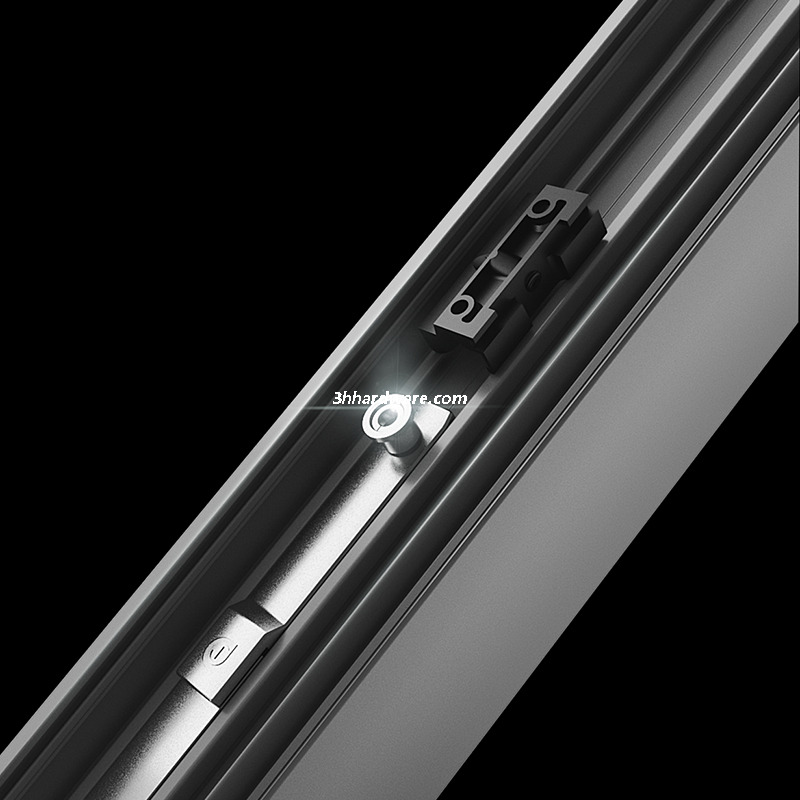

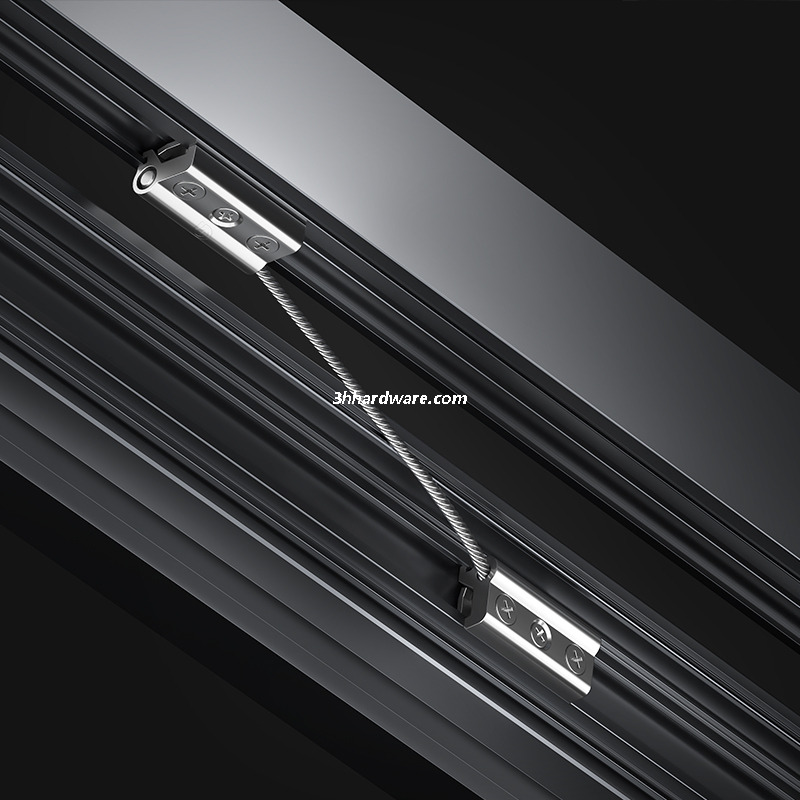

Equipped with mosquito screens, load-bearing hardware milling-free profile installation. High-security lock box and lock point design.Many options to meet the needs of home ventilation in different scenarios.Easy installation,with anti-falling device to ensure the safety effectively.
Instructions
Opened the screen window sash firstly,and then open the glass window sash.The opening angle of screen sash can be up to 170 degrees,and of the glass sash is up to 89 degrees.
Application Scenarios
Residential, hospitals, schools,etc..

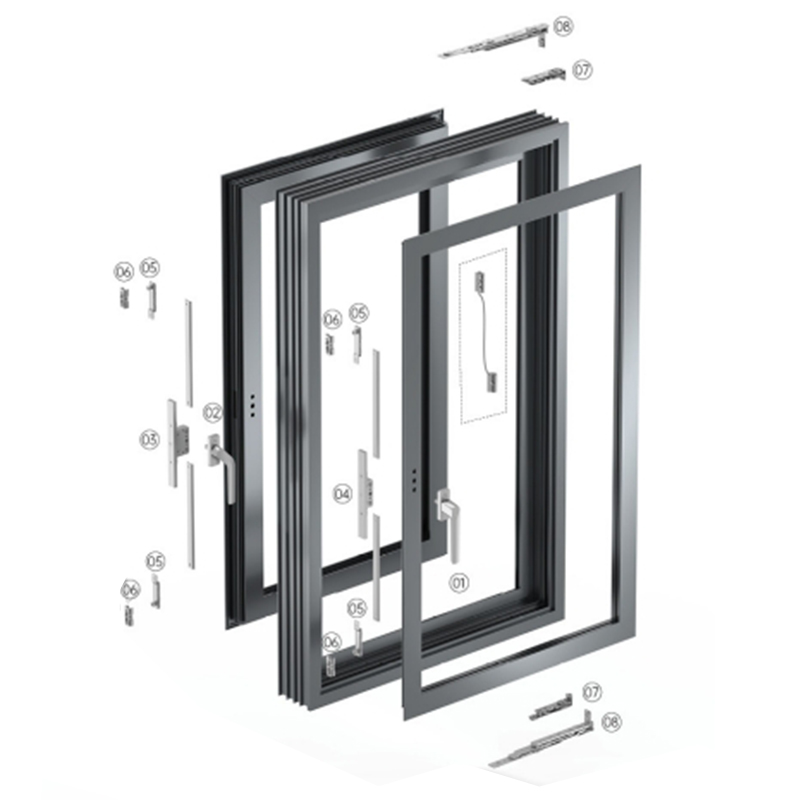

Configuration
No. | Item No. | Item | QTY | Description |
1 | AZS01 | Window Handle | 1 | Aluminum alloy,Powder coating(Optional) |
2 | AZS01AR | Window Handle | 1 | Aluminum alloy,Powder coating(Optional) |
3 | ACH01-30 | Lock Box | 1 | Zinc alloy,Oxidization |
4 | ACH01-11.5 | Lock Box | 1 | Zinc alloy,Oxidization |

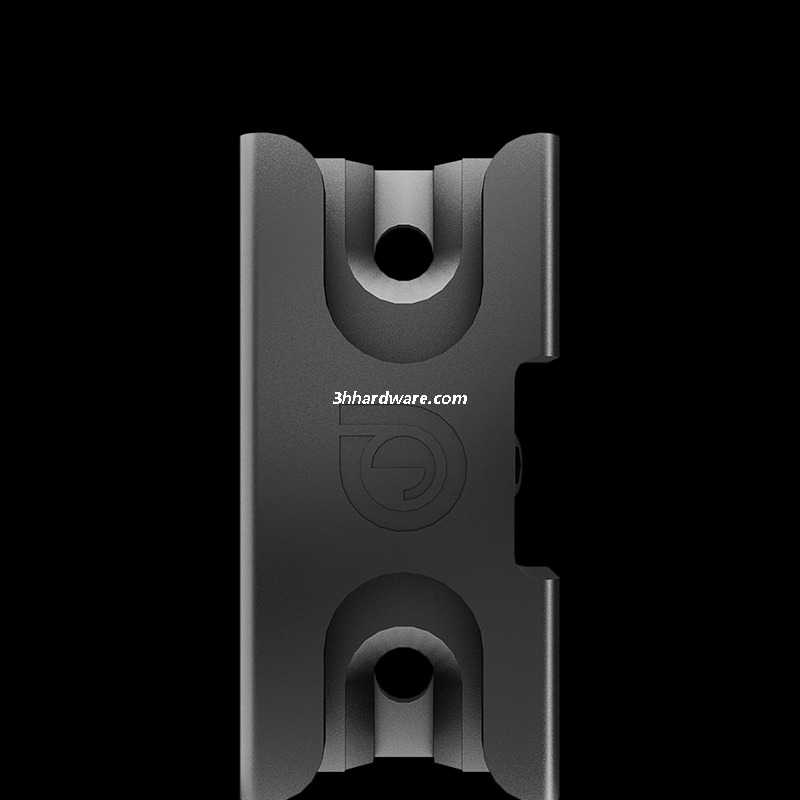

5 | AS01-01 | Connecting Block | 4 | Aluminum alloy,Powder coating |
6 | AS01-02 | Lock Seat | 4 | Aluminum alloy,Powder coating |

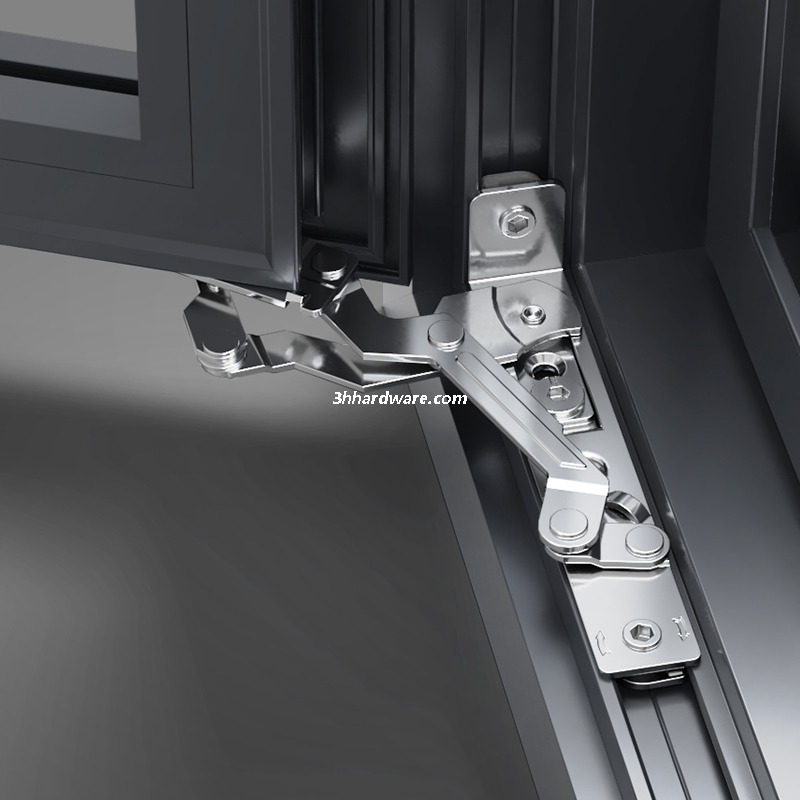

7 | ABJ01 | Window Hinge | 1 | 304 SS,Natural |
8 | ASJ01 | Screen Window Hinge | 1 | 304 SS,Natural |
