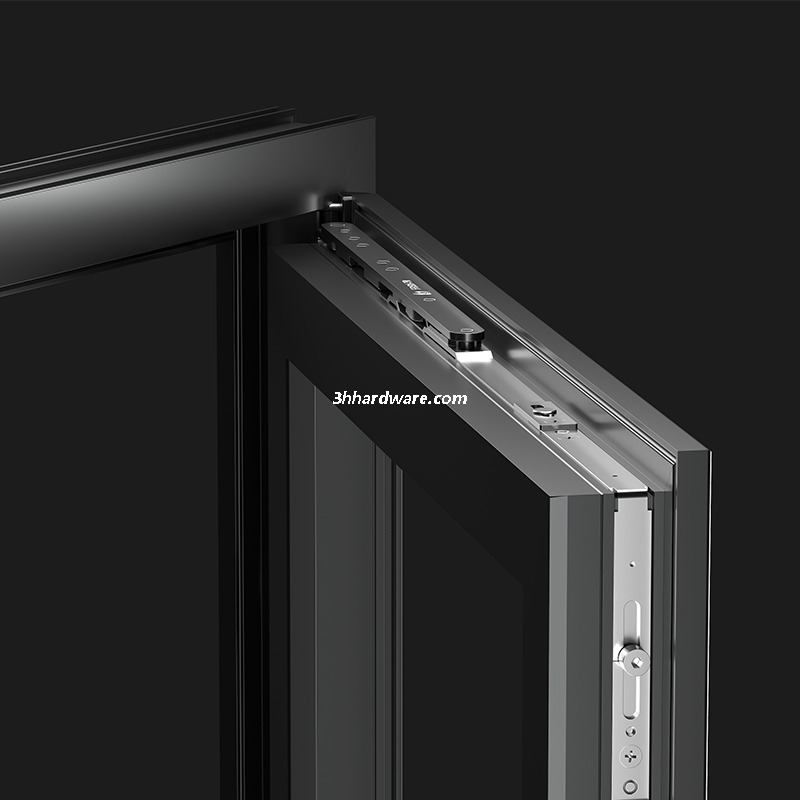

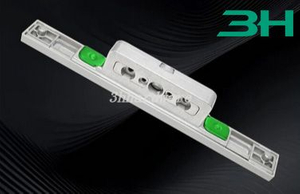

UPVC Tilt and Turn Window Hardware


Availability:

Quantity:



Inquire Add to Basket

The upper hinge carries the top portion of the window sash and works together with the bottom hinge to distribute weight evenly. This prevents the sash from sagging, tilting, or binding against the frame – ensuring smooth operation over years of daily use.

Model:
UPVC Tilt and Turn Window Hardware
Brand:
3H INC.

Advantages

Main Components

Configuration

1.Easy Installation, Adjustable for Tolerances
The system supports on-site adjustment, effectively reducing alignment issues caused by installation tolerances and lowering rework rates.

2. High Load Capacity & Stable Support
The core load-bearing components are made using a thickened, one-piece forging process, supporting a maximum load of up to 100 kg and suitable for extra-wide sashes (800–1500 mm).

3. 3D Adjustable Structure
Supports vertical, horizontal, and tilt adjustment in three directions. The multi-axis linkage support structure enhances overall load-bearing performance.

4. Concealed Hinge Design
The hinges are fully concealed within the profile chamber, delivering a clean, minimalist appearance and enhancing overall aesthetics.

5. Anti-Misoperation Safety Design
Equipped with an anti-misoperation device and anti-misoperation strike as standard, it prevents accidental switching from tilt mode to turn mode and avoids hazards caused by unexpected sash rotation.

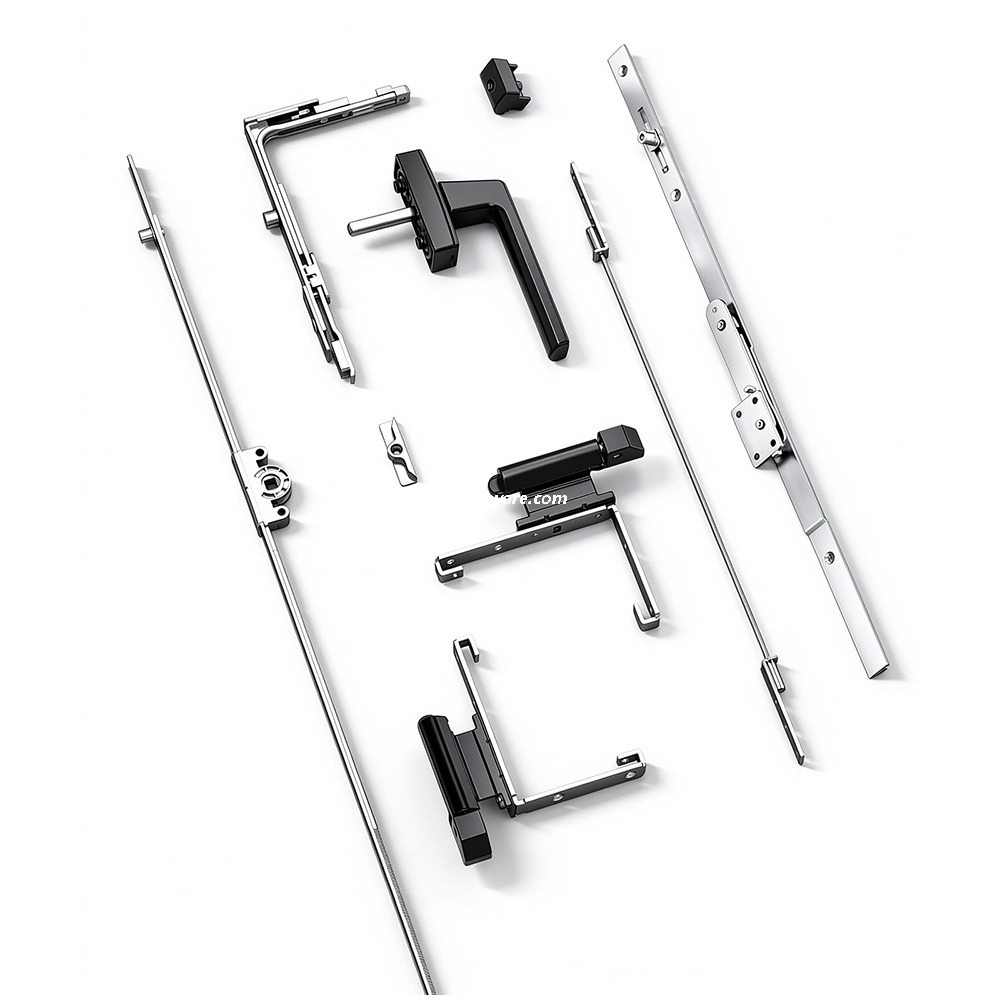

Main Components

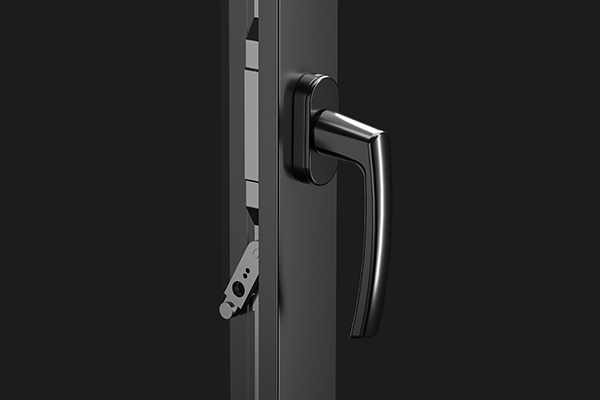

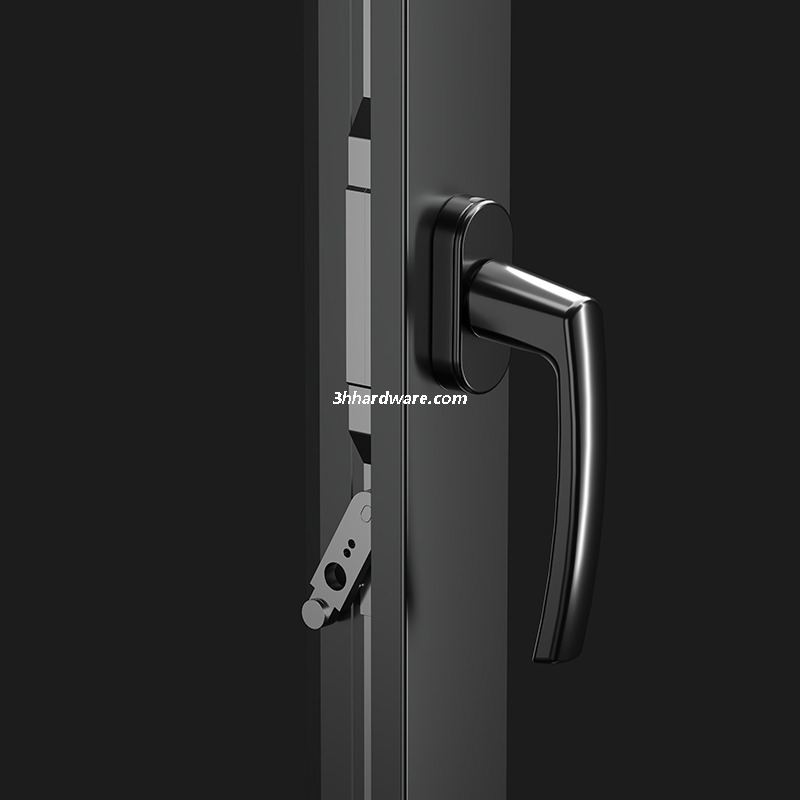

Window Handle

Manufactured from high-grade zinc alloy, aluminum, or stainless steel. Protective finishes include powder coating, anodizing, electroplating, and brushed stainless steel. Resists rust, UV, and wear.

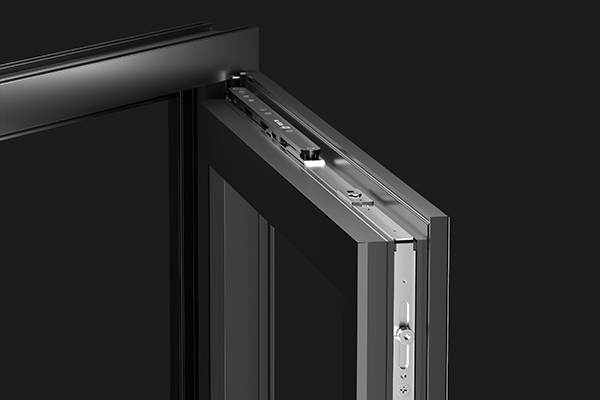

Upper Hinge

The upper hinge carries the top portion of the window sash and works together with the bottom hinge to distribute weight evenly. This prevents the sash from sagging, tilting, or binding against the frame – ensuring smooth operation over years of daily use.

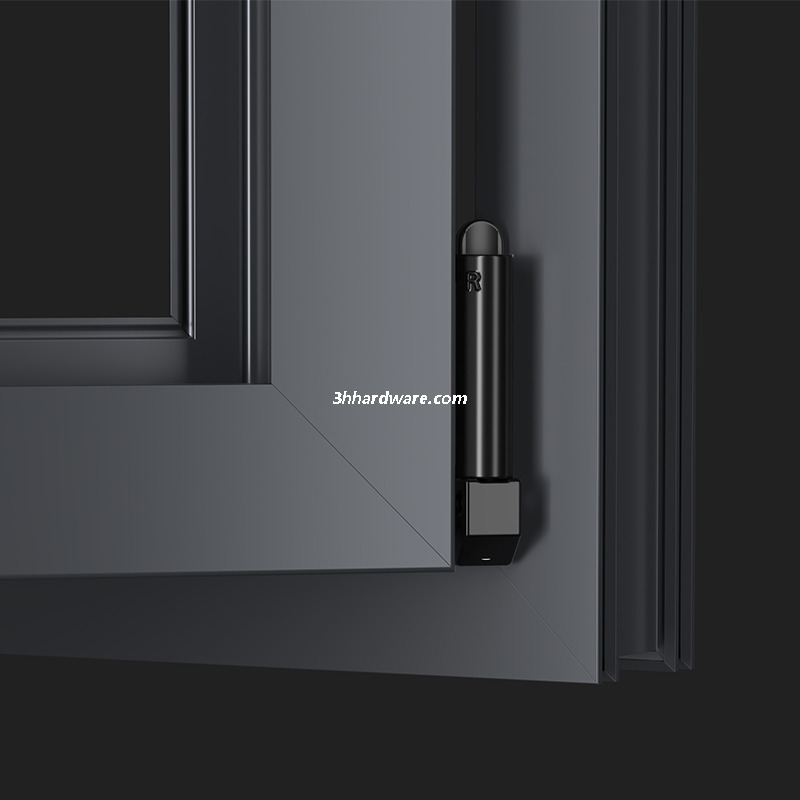

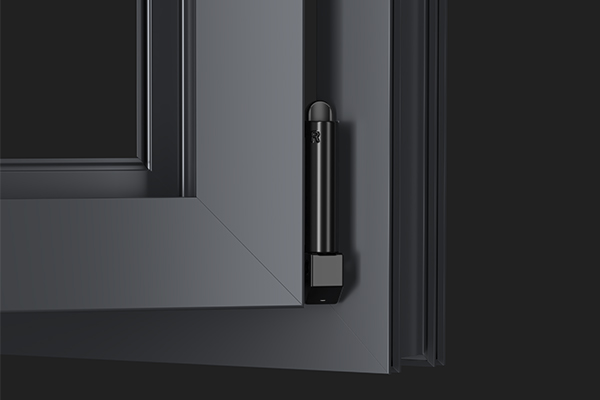

Bottom Hinge

The bottom hinge is the primary load-bearing component of the window sash. It supports the full weight of the sash and works with the upper hinge to keep the window square and aligned. A quality bottom hinge prevents sagging, dragging, and frame contact – ensuring smooth operation for years.

Configuration

No.	9 Series Item No.		13 Series Item No.		name	QTY	Description
1	PCZ26		PCZ26		Window Handle	1	more options are available
2	PX.CQ1006	PXS01	PX.CQ1006	PXS02	7.5Transmission rod(600mm)	1	for sash height 600-900mm
	PX.CQ1008		PX.CQ1008		7.5Transmission rod(800mm)	-	for sash height 700-1100mm
	PX.CQ1010		PX.CQ1010		7.5Transmission rod(1000mm)	-	for sash height 900-1300mm
	PX.CQ1012		PX.CQ1012		7.5Transmission rod(1200mm)	-	for sash height 1100-1500mm
	PX.CQ1014		PX.CQ1014		7.5Transmission rod(1400mm)	-	for sash height 1300-1700mm
3	PX. ZJQ01		PX. ZJQ01		Corner Device	1	Carbon Steel,zinc plating
4	PX. FC01		PX. FC01		Overturn Plugin	1	Carbon Steel,zinc plating
5	PX. X9-500L/R		PX. X13-500L/R		Tilt-turn component(360mm)	1	for sash width 401-510mm
	PX.X9-750L/R		PX.X13-750L/R		Tilt-turn component(610mm)	-	for sash width 511-750mm
	PX. X9-860L/R		PX. X13-860L/R		Tilt-turn component(840mm)	-	for sash width 751-1000mm
6	PX. JCS		PX. JMS		Upper hinge	1	Carbon Steel,zinc plating
7	PX. JCX		PX. JMX		Bottom hinge	1	Carbon Steel,zinc plating
8	PX.FW01		PX.FW01		Anti-error device	1	Carbon Steel,zinc plating
9	PX. WZS09		PX. WZS13		Anti-error device holder	1	Carbon Steel,zinc plating
10	PX. FZ9		PX. FZ13		Overturn Holder	1	Carbon Steel,zinc plating
11	PX. SZ9		PX. SZ13		Lock Seat	1	Carbon Steel,zinc plating
-	PX.LG01-215	300-600mm sash height option			Connecting Rod(215mm)	1	add if need better air-tightness
	PX.LG01-530	600-1100mm sash height option			Connecting Rod(530mm)	1
	PX.LG01-730	1100-1600mm sash height option			Connecting Rod(730mm)	1
-	PDE B	different length for option			Limiter Stay	1	304SS
-	PX.CQ15	for bigger sash profile option			15 Transmission rod(Optional)	1	Carbon Steel,zinc plating
-	PX.ZJQ01A	option for instead of item 4 and 10			Corner Device(Optional)	1	Carbon Steel,zinc plating
-	PJCX03B	option for instead of item 7			Bottom hinge(Optional)	1	Carbon Steel,zinc plating

Product Adaptation
Suitable for U-shaped casement window profiles, PXS01 for 9 series profiles, PXS02 for 13 series profiles.

Features

Easy installation and convenient operation.Can be adjustable to reduce the installation error effectively.
Multiple-length of the transmission devices and bottom hung parts can be optional.

Instructions

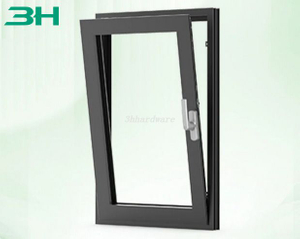

The handle is locked at 0 degrees, 90 degrees for the intemal open state, 180 degrees for the inward tilt state.
