NXC06
3H INC.
Item No. | NXC06 |
Size | Minimum width of the frame is 435mm,minimum height is 620mm,maximum height is 1800mm |
Application | European standard 20 grooved window |
Load Bearing | 130KG |
Material | 304 stainless Steel,Zinc alloy |
Surface Treatment | Powder coating |
Color | handles' is customized,the other is natural |
Components | Fork handle,European standard groove stay,Sealing cover strip... |
Function | durable,reliable |
Package | Box |

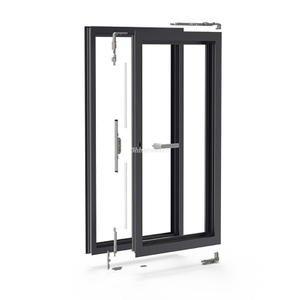

Specification
No. | Item Name | Remark |
1 | Slanting Connection Rod | Optional |
2 | Corner Device | / |
3 | Misoperation Device | / |
4 | Overturn Lock Rod | / |
5 | Upper Piovt Hinge | / |
6 | Bottom Piovt Hinge | / |
7 | Handle | The Fork Must not bumps |
8 | Lock Holder | / |
9 | Locking Plate | / |
10 | Supporting Block | / |
11 | Elevating Block | / |
12 | Stay | Optional |
13 | Aluminium Drawbar | La,Lb,Lc |
14 | Rubber Seal | Depending on the profile |
15 | Pull Rod Components | It's optional when window width is over 1100mm |
Product Description
1. Achieve the inward opening and lower hanging multiple opening functions,thus,the window is flexible to be opened that it has the efficient heat-proof and sound-proof function,which can satisfy the different requirements and make the life colorful;
2. All the transmission part can be operated by the handle,which is easy and comfortable,and make the window, door and wall operate to the consistent interface;
3. Inserted hardware is adopted with the environmental plating process which can let the hardware has high corrosion resistance,and its anti-corrosion neutral salt spray test up to 10 hours;
4. About the appearance,there are 32 kinds of standard color for selecting to satisfy the customers’ different requirement;
5. The multiple level safety design with the standard components,compact structure and clamping structure that can be operated very easy and comfortable;
6. This system is with the durable,reliable,tiny appearance and rich design that can lead the new technical design standard of hardware;
7. The system is suitable for European standard 20 groove.
